Product Description

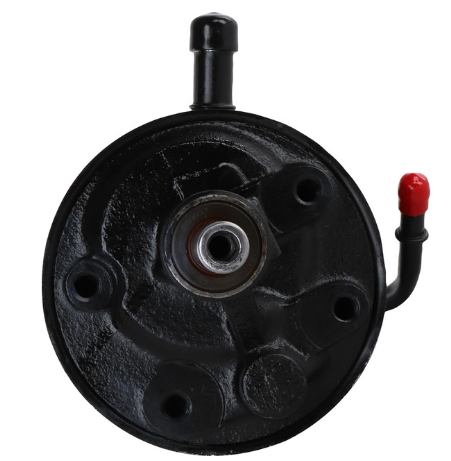

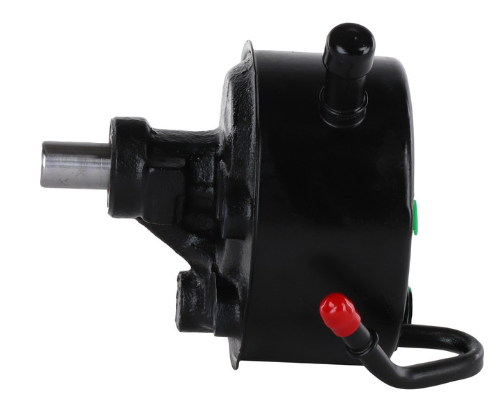

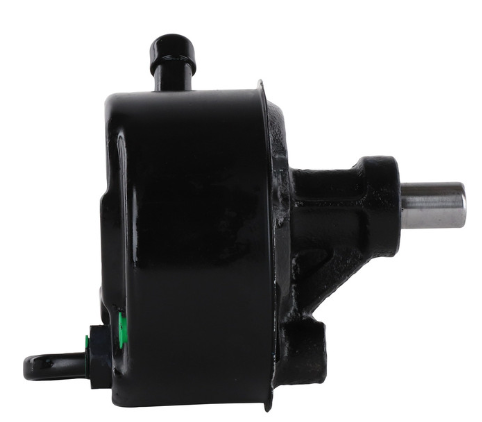

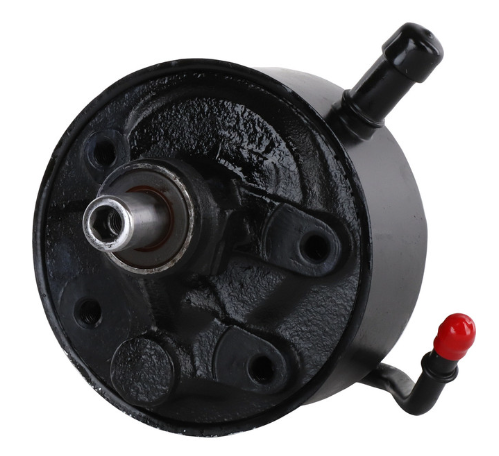

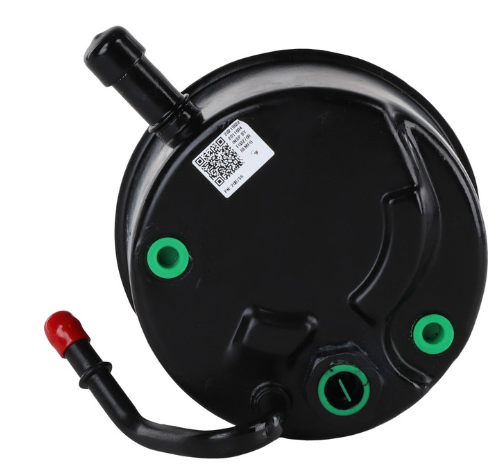

The CARDONE 20-8756 Remanufactured Power Steering Pump is engineered to restore factory steering performance and durability for Chevrolet and GMC full-size vans. Each unit undergoes a complete OE-level remanufacturing process that includes inspection, disassembly, precision machining, and extensive hydraulic testing. Critical internal components—such as cam packs and spool valves—are triple-tested to ensure consistent steering response. Premium HNBR seals, precision-ground shafts, and 100% pressure-calibrated relief valves help eliminate leaks, reduce noise, and maintain proper steering assist under all operating conditions.
Environmentally responsible remanufacturing saves up to 80% of the materials and energy required to build a new pump, delivering long-lasting performance with reduced environmental impact.
Key Features
-
Triple-tested cam packs and spool valves ensure reliable hydraulic performance.
-
Premium HNBR seals resist high temperatures and prevent leaks.
-
Precision-ground shaft eliminates premature seal wear and extends pump life.
-
Each pump includes a 100% calibrated pressure relief valve for proper steering assist.
-
Computer-tested final assembly verifies inlet/outlet pressure, flow, noise, and steering effort.
-
Cast iron housing delivers strength and durability for heavy-duty applications.
-
Environmentally friendly remanufacturing reduces waste and material consumption.
Technical Specifications
| Spec |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment Type |
Barb |
| Inlet Diameter |
0.423 IN (10.74 MM) |
| Inlet Quantity |
1 |
| Outlet Attachment Type |
Threaded |
| Outlet Quantity |
1 |
| Outlet Thread Size |
16x1.5 |
| Pulley Attachment Type |
Press-On |
| Pulley Belt Type |
Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
Yes |
| Reservoir Included |
Yes |
| Reservoir Cap Included |
No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Chevrolet: 15270799, 15928343, 208326683, 20832683, 26040780, 26070078, 88963503
GMC: 15270799, 15928343, 20832683, 25749748, 26040780, 26070078, 88963503
Vehicle Compatibility
| Year |
Make |
Model |
Engine |
Notes |
| 1996, 1999–2014 |
Chevrolet |
Express 1500 |
4.3L |
With Attached Reservoir; Remote Reservoir Not Included |
| 1996, 1999–2002 |
Chevrolet |
Express 1500 |
5.0L |
With Attached Reservoir |
| 2003–2014 |
Chevrolet |
Express 1500 |
5.3L |
With Attached Reservoir |
| 1996, 1999–2002 |
Chevrolet |
Express 1500 |
5.7L |
With Attached Reservoir |
| 1999–2002 |
Chevrolet |
Express 2500 |
4.3L |
7300 lb GVW; With Attached Reservoir |
| 1996, 2003–2006 |
Chevrolet |
Express 2500 |
4.3L |
With Attached Reservoir |
| 2003–2016 |
Chevrolet |
Express 2500 |
4.8L |
With Attached Reservoir |
| 1999–2002 |
Chevrolet |
Express 2500 |
5.0L |
7300 lb GVW; With Attached Reservoir |
| 1996 |
Chevrolet |
Express 2500 |
5.0L |
With Attached Reservoir |
| 2003–2005 |
Chevrolet |
Express 2500 |
5.3L |
With Attached Reservoir |
| 1999–2002 |
Chevrolet |
Express 2500 |
5.7L |
7300 lb GVW; With Attached Reservoir |
| 1996 |
Chevrolet |
Express 2500 |
5.7L |
With Attached Reservoir |
| 2003–2016 |
Chevrolet |
Express 2500 |
6.0L |
With Attached Reservoir |
| 1999–2002 |
Chevrolet |
Express 2500 |
6.5L |
7300 lb GVW; With Attached Reservoir |
| 1996 |
Chevrolet |
Express 2500 |
6.5L |
With Attached Reservoir |
| 2006–2010 |
Chevrolet |
Express 2500 |
6.6L |
With Attached Reservoir |
| 2003–2016 |
Chevrolet |
Express 3500 |
4.8L |
With Attached Reservoir |
| 2003–2008 |
Chevrolet |
Express 3500 |
5.3L |
With Attached Reservoir |
| 2003–2016 |
Chevrolet |
Express 3500 |
6.0L |
With Attached Reservoir |
| 2006–2010 |
Chevrolet |
Express 3500 |
6.6L |
With Attached Reservoir |
| 2009–2016 |
Chevrolet |
Express 4500 |
6.0L |
With Attached Reservoir |
| 2009–2010 |
Chevrolet |
Express 4500 |
6.6L |
With Attached Reservoir |
| 1996, 1999–2014 |
GMC |
Savana 1500 |
4.3L |
With Attached Reservoir |
| 1996, 1999–2002 |
GMC |
Savana 1500 |
5.0L |
With Attached Reservoir |
| 2003–2014 |
GMC |
Savana 1500 |
5.3L |
With Attached Reservoir |
| 1996, 1999–2002 |
GMC |
Savana 1500 |
5.7L |
With Attached Reservoir |
| 1999–2002 |
GMC |
Savana 2500 |
4.3L |
7300 lb GVW; With Attached Reservoir |
| 1996, 2003–2006 |
GMC |
Savana 2500 |
4.3L |
With Attached Reservoir |
| 2003–2016 |
GMC |
Savana 2500 |
4.8L |
With Attached Reservoir |
| 1999–2002 |
GMC |
Savana 2500 |
5.0L |
7300 lb GVW; With Attached Reservoir |
| 1996 |
GMC |
Savana 2500 |
5.0L |
With Attached Reservoir |
| 2003–2005 |
GMC |
Savana 2500 |
5.3L |
With Attached Reservoir |
| 1999–2002 |
GMC |
Savana 2500 |
5.7L |
7300 lb GVW; With Attached Reservoir |
| 1996 |
GMC |
Savana 2500 |
5.7L |
With Attached Reservoir |
| 2003–2016 |
GMC |
Savana 2500 |
6.0L |
With Attached Reservoir |
| 1999–2002 |
GMC |
Savana 2500 |
6.5L |
7300 lb GVW; With Attached Reservoir |
| 1996 |
GMC |
Savana 2500 |
6.5L |
With Attached Reservoir |
| 2006–2010 |
GMC |
Savana 2500 |
6.6L |
With Attached Reservoir |
| 2003–2016 |
GMC |
Savana 3500 |
4.8L |
With Attached Reservoir |
| 2003–2016 |
GMC |
Savana 3500 |
6.0L |
With Attached Reservoir |
| 2006–2010 |
GMC |
Savana 3500 |
6.6L |
With Attached Reservoir |
| 2009, 2011–2016 |
GMC |
Savana 4500 |
6.0L |
With Attached Reservoir |
| 2009–2010 |
GMC |
Savana 4500 |
6.6L |
With Attached Reservoir |
Installation & Warranty Notes
-
Flush the entire power steering system before installing the pump.
-
Use only OE-recommended power steering fluid.
-
Install an in-line filter to prevent contamination and maintain warranty coverage.
-
Inspect hoses, reservoir, brackets, and belt condition before installation.
-
Ensure proper pulley alignment and torque specs during installation.
