Product Description

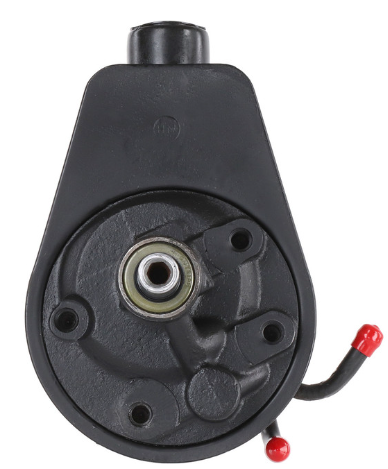

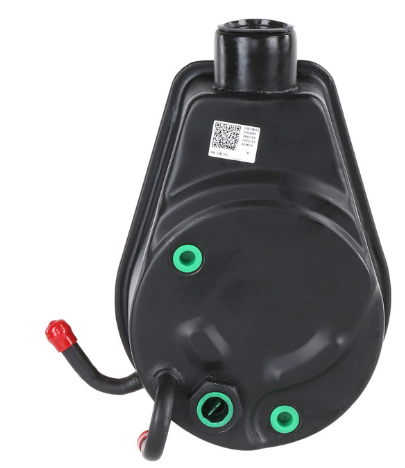

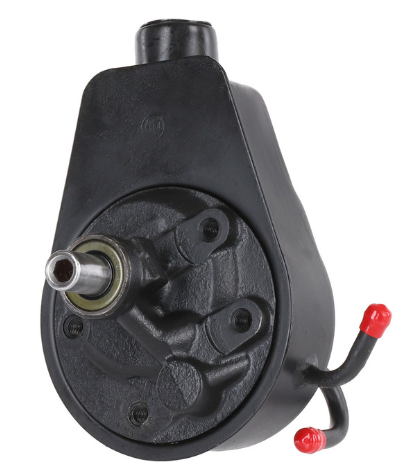

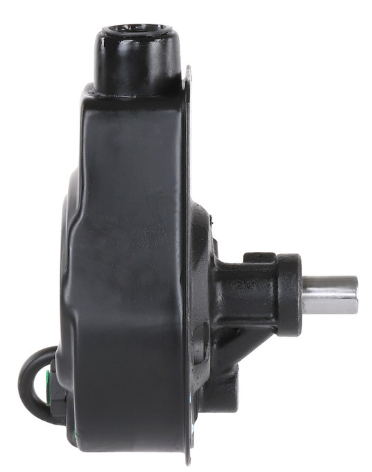

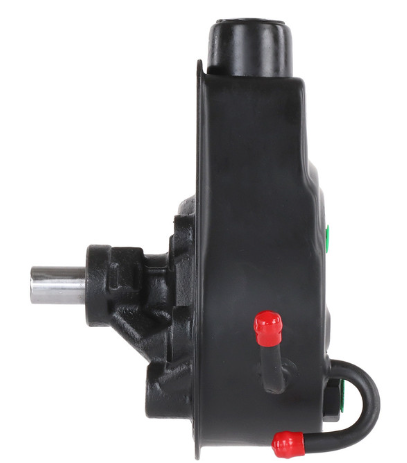

The CARDONE 20-8715 remanufactured power steering pump is designed to restore smooth, reliable steering performance for heavy-duty GM trucks and commercial chassis vehicles from 1980–1991. Each pump undergoes extensive remanufacturing and is meticulously tested to ensure long-lasting durability and OE-level performance.
Every unit features 100% new premium HNBR seals and O-rings, offering superior high-temperature resistance to prevent fluid leaks. Critical internal components—including campacs and spool valves—are triple-tested to ensure reliability under demanding operating conditions. Final assemblies are computer-tested to validate pressure output, flow rate, bypass operation, steering effort, and acoustic performance.
CARDONE’s remanufacturing method also reduces energy and material waste by up to 80%, making this pump an environmentally responsible replacement choice.
Key Features
-
Meets or exceeds OEM performance and durability standards
-
Triple-tested internal components for maximum reliability
-
Premium HNBR seals and O-rings resist heat, pressure, and fluid breakdown
-
Precision-surfaced shafts prevent premature wear and extend pump life
-
100% tested pressure relief valves ensure consistent hydraulic output
-
Extensive final computerized testing guarantees smooth and quiet operation
-
Includes integrated reservoir
-
Eco-friendly remanufacturing process reduces material consumption by 80%
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment / Diameter |
Barb / 0.423 in (10.74 mm) |
| Inlet Quantity |
2 |
| Outlet Attachment / Thread |
Threaded / 16×1.5 |
| Outlet Quantity |
1 |
| Pulley Attachment Type |
Press-On |
| Pulley Belt Type |
Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Reservoir Included |
Yes |
| Reservoir Cap Included |
No |
| Shaft Type |
Press-On |
| Pump Type |
Hydraulic |
OE Cross Reference
-
Chevrolet: 26019740, 26019741, 7839798, 7839802, 7839810, 7840996
-
GMC: 26019740, 26019741, 7839798, 7839802, 7839810, 7840996
Vehicle Compatibility & Notes
Reservoir included. For warranty compliance, always flush the system, use OE-specified fluid, and install an in-line filter.
Chevrolet Applications
C30 (1980–1986)
Engine: 5.7L
K20 (1980 – Hydro-Boost)
Engine: 6.6L
K30 (1980–1986)
Engines: 5.7L, 6.6L (1980 Hydro-Boost)
P20 (1982)
Engine: 6.2L
P30 (1980–1982)
Engines: 5.7L, 6.2L
R30 (1987–1988)
Engine: 5.7L
R3500 (1989–1991)
Engine: 5.7L
V30 (1987–1988)
Engine: 5.7L
V3500 (1989–1991)
Engine: 5.7L
GMC Applications
C3500 (1980–1986)
Engine: 5.7L
K2500 (1980 – Hydro-Boost)
Engine: 6.6L
K3500 (1981–1986)
Engines: 5.7L, 6.6L (1980 Hydro-Boost)
P2500 (1982)
Engine: 6.2L
P3500 (1980–1982)
Engines: 5.7L, 6.2L
R3500 (1987–1991)
Engine: 5.7L
V3500 (1987–1991)
Engine: 5.7L
Installation Notes
-
Flush entire power steering system prior to installation
-
Use OE-approved power steering fluid
-
Install in-line return filter for warranty protection
-
Ensure correct line routing for Hydro-Boost models (2 return lines)
-
Bleed system thoroughly to remove air
