Product Description

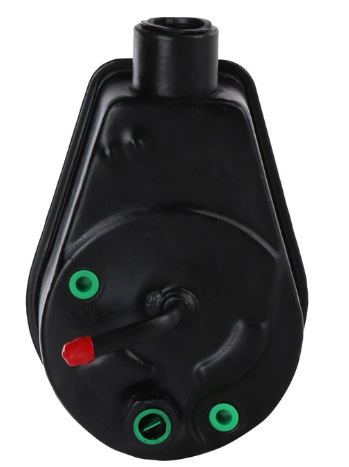

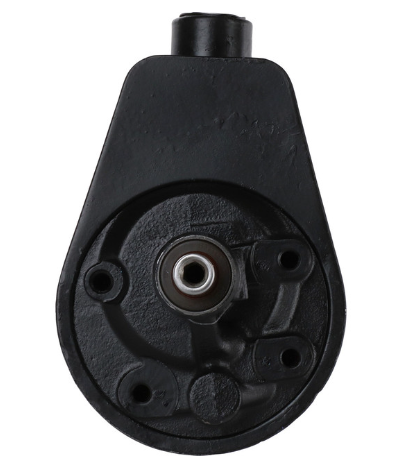

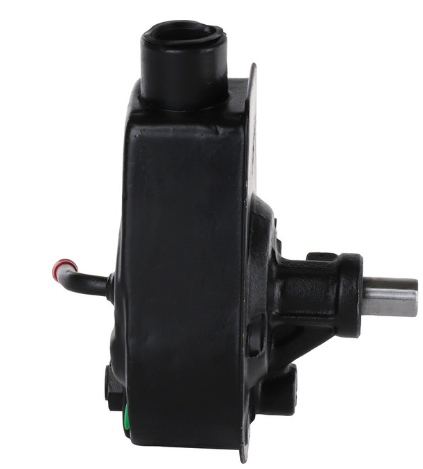

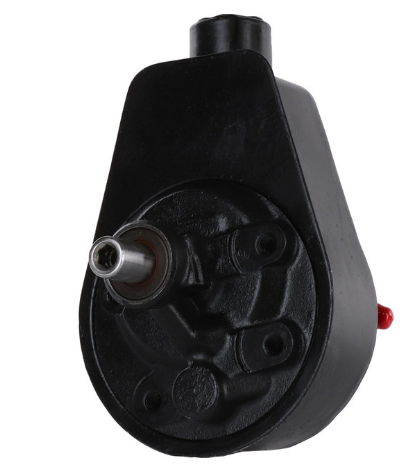

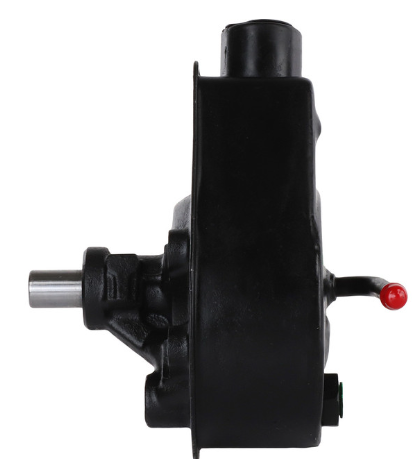

The CARDONE 20-7878 Remanufactured Power Steering Pump restores factory steering performance for a wide range of Ford Econoline vans (E-100, E-150, E-250, E-350). Each pump is precision-engineered and rigorously tested to meet or exceed OEM standards for fit, function, and durability.
All critical internal components, including cam packs, spool valves, and pressure-relief valves, are triple-tested to ensure consistent hydraulic performance and leak-free operation. The pump uses premium HNBR seals and O-rings, which resist high temperatures and power-steering fluid breakdown far better than conventional rubber.
Every assembly undergoes a comprehensive computer-controlled test to measure output pressure, flow rate, steering effort, and noise, guaranteeing smooth and reliable steering performance. CARDONE’s remanufacturing process not only ensures long-lasting quality but also reduces raw material use and energy consumption by up to 80%, making it an environmentally responsible choice.
Key Features
-
Meets or exceeds OEM performance and durability standards
-
Triple-tested internals (valves, shafts, and seals) for reliability and hydraulic integrity
-
100% new HNBR O-rings and seals resist heat and chemical wear
-
Precision-machined shaft surfaces eliminate premature seal damage
-
Computer-tested for pressure, flow, and steering effort consistency
-
Reservoir included for plug-and-play installation
-
Environmentally friendly – up to 80% reduction in material and energy use
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment / Diameter |
Barb / 0.423 in (10.74 mm) |
| Outlet Attachment / Thread |
Threaded / 16×1.5 |
| Pulley Attachment / Belt |
Press-On / Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Reservoir Included / Cap |
Yes / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross Reference
Ford: E2UZ3A674A
Vehicle Compatibility
Reservoir included. For warranty protection, always flush the steering system, install an in-line filter, and use OE-specified power steering fluid.
Ford
-
E-100 Econoline (1980–1983 4.9L, 5.0L, 5.8L, 6.6L)
-
E-100 Econoline Club Wagon (1980–1983 4.9L, 5.0L, 5.8L)
-
E-150 Econoline (1980–1996 4.9L, 5.0L, 5.8L)
-
E-150 Econoline Club Wagon (1980–1996 4.9L, 5.0L, 5.8L)
-
E-250 Econoline (1980–1996 4.9L, 5.0L, 5.8L, 6.6L, 7.5L)
-
E-250 Econoline Club Wagon (1980–1991 4.9L, 5.0L, 5.8L, 6.6L, 7.5L)
-
E-350 Econoline (1980–1996 4.9L, 5.0L, 5.8L, 6.6L, 7.3L, 7.5L)
-
E-350 Econoline Club Wagon (1980–1996 4.9L, 5.0L, 5.8L, 6.6L, 7.3L, 7.5L)
Includes Standard Cargo Van, Extended Cargo Van, Cutaway Van, and Passenger Van configurations.
Installation & Warranty Notes
-
Flush entire steering system before installing to remove contaminants.
-
Always use OEM-approved steering fluid.
-
Install an in-line filter to protect from debris and preserve warranty coverage.
-
Check pulley press-fit depth and alignment before startup.
-
Inspect hoses, fittings, and seals for leaks during installation.
