Product Description

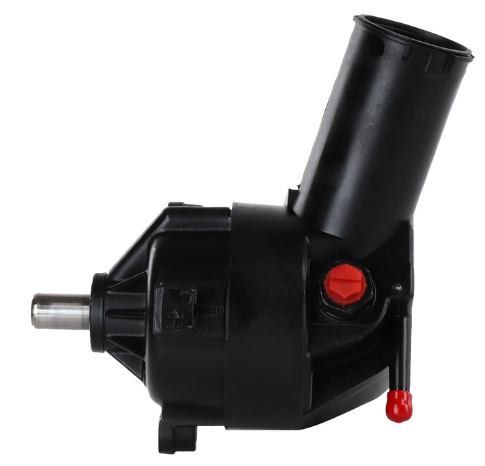

The CARDONE 20-7271 Remanufactured Power Steering Pump is meticulously engineered to restore the performance and reliability of the original equipment unit for a range of Ford and Mercury vehicles. Every pump undergoes a stringent remanufacturing process to meet or exceed OEM standards, ensuring long-lasting steering precision and consistent hydraulic output.

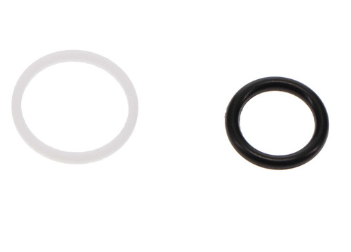

Each unit features 100% new premium HNBR seals and O-rings, built to withstand extreme temperatures and resist fluid breakdown. Critical components—including cam packs, spool valves, and pressure relief valves—are triple-tested to guarantee hydraulic integrity, leak prevention, and smooth steering performance.
Before final approval, every pump is computer-tested for pressure, flow rate, steering effort, and noise, providing verified, real-world dependability. CARDONE’s remanufacturing process conserves up to 80% of the energy and materials required for new production, combining reliability with sustainability.
Key Features
-
Remanufactured to OE specifications for guaranteed performance and fit
-
Triple-tested internals for quality assurance and hydraulic reliability
-
HNBR seals and O-rings deliver superior heat and chemical resistance
-
Precision-machined shafts reduce friction and extend pump life
-
Pre-calibrated pressure relief valves ensure consistent steering performance
-
Includes reservoir for quick, direct-fit installation
-
Eco-conscious manufacturing process saves up to 80% energy and raw material use
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Aluminum |
| Inlet Attachment / Diameter |
Barb / 0.423 in (10.74 mm) |
| Outlet Attachment / Thread |
Threaded / 16×1.5 |
| Pulley Attachment / Belt |
Press-On / Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Reservoir Included / Cap |
Yes / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross Reference
Ford: E5DZ3A697A, F09Z3A674A, F19Z3A674ABRM, F58Z3A674A, F58Z3A674AARM, F58Z3A674ABRM, F6TZ3A697AA, XL5Z3A674AA
Mercury: F09Z3A674A
Vehicle Compatibility
Reservoir included. For warranty protection, always flush the steering system, install an in-line filter, and use OE-specified power steering fluid.
Ford
-
Aerostar (1990–1997 3.0L, 4.0L)
-
Explorer (1995–2000 4.0L)
-
F-100 Ranger (1998–2001 3.0L; 1998–2000 2.5L)
-
Ranger (1998–2006 3.0L; 1998–2000 2.5L; 1998–2000 4.0L)
-
Sable (1994–1995 3.8L)
-
Taurus (1990–1995 3.0L, 3.8L)
-
Windstar (1995–2000 3.0L; 1995–1998 3.8L)
Mercury
Installation & Warranty Notes
-
Flush the complete steering system before installation to remove contaminants.
-
Always use OE-approved power steering fluid.
-
Install an in-line filter to protect the system and preserve warranty coverage.
-
Check pulley alignment and press-fit depth before operation.
-
Inspect fittings, hoses, and O-rings for leaks during installation.
