Product Description
The CARDONE 20-7256 Remanufactured Power Steering Pump is engineered to deliver reliable hydraulic performance, restoring smooth and consistent steering assist to a wide range of Ford, Mercury, and Mazda vehicles. Each unit begins with an in-depth evaluation of the original design, allowing CARDONE to implement improvements that enhance durability beyond OEM specifications.
Critical internal components—including campacs, spool valves, and pressure relief valves—are triple-tested to ensure consistent steering response and long-term reliability. Every pump undergoes a computerized hydraulic efficiency test to verify proper pressure output, fluid flow, valve operation, steering effort, and noise performance.
All seals are replaced with brand-new O-rings and high-temperature HNBR sealing material, which resists heat breakdown far better than conventional seal compounds. Precision-surfaced shafts prevent premature wear, extending pump service life. As an OE remanufactured unit, the 20-7256 ensures perfect fitment and seamless installation.
Environmentally responsible remanufacturing reduces raw material and energy usage by up to 80% compared to producing a new power steering pump.
Key Features
-
Triple-tested critical components ensure consistent performance and reliability
-

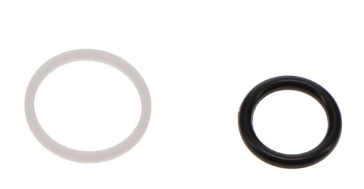

Built with 100% new O-rings and premium HNBR seals that resist high-temperature degradation
-
Precision-surfaced shafts help eliminate early seal wear and extend pump life
-
Includes fully tested and calibrated pressure relief valves
-
Computer-tested to verify pressure, bypass function, fluid flow, valve operation, steering effort, and noise
-
OE remanufactured design guarantees direct-fit installation
-
Eco-friendly remanufacturing reduces material and energy waste by up to 80%
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Aluminum |
| Inlet Attachment Type |
Barb |
| Inlet Diameter |
0.423 IN (10.74 MM) |
| Inlet Quantity |
1 |
| Mounting Hardware Included |
No |
| Outlet Attachment Type |
Threaded |
| Outlet Quantity |
1 |
| Outlet Thread Size |
16x1.5 |
| Pulley Attachment Type |
Press-On |
| Pulley Belt Type |
Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Remote Reservoir Included |
No |
| Reservoir Cap Included |
No |
| Reservoir Included |
Yes |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Mercury:
2F1Z3A674AARM, YF1Z3A674DBRM
Ford:
2F1Z3A674AARM, 5F1Z3A674A, YF1Z3A674DBRM
Mazda:
ZZM032600, ZZP032600, ZZP032600A, ZZP032600B
Vehicle Compatibility
(All applications include Reservoir. For warranty protection, install an in-line filter, use OE-specified fluid, and perform a complete system flush.)
Ford
Taurus (RWD/3.0L)
Mazda
B2500 (2.5L)
B3000 (3.0L)
B4000 (4.0L)
Mercury
Sable (3.0L)
Installation & Warranty Notes
-
Always use OE-specified power steering fluid
-
Perform a complete system flush before installing the pump
-
Install an in-line power steering filter to maintain warranty coverage
-
Inspect hoses, pump, and reservoir for contamination or deterioration
-
Never reuse old or contaminated fluid
