Product Description

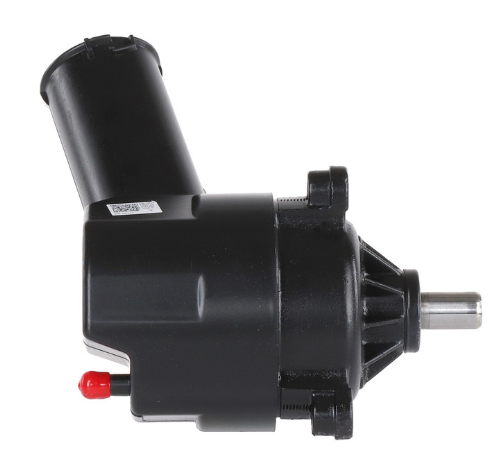

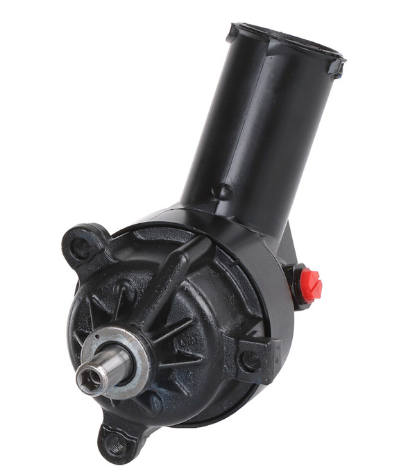

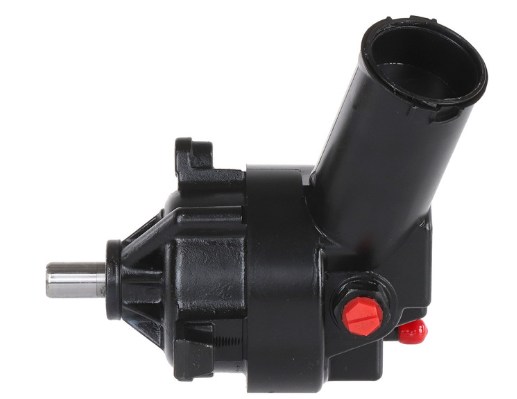

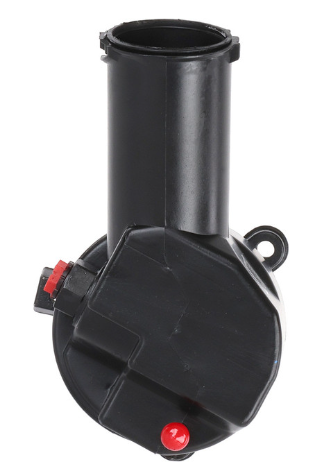

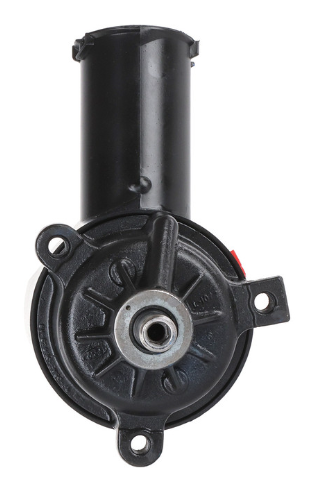

The CARDONE 20-7248 Remanufactured Power Steering Pump is precision-engineered to restore original steering performance for select Ford, Mercury, and Mazda applications. Each pump is carefully remanufactured to meet or exceed OE specifications, with enhanced design improvements that ensure a longer service life and smoother steering response.
All internal components—such as cam packs, spool valves, and pressure-relief valves—are triple-tested for hydraulic performance and reliability. Each unit is assembled using 100% new premium-grade HNBR seals and O-rings, designed to withstand high temperatures and resist fluid degradation.
Every pump undergoes computer-controlled testing for pressure, bypass, fluid flow, and noise to confirm proper operation. The result is a direct-fit, leak-free replacement that combines OEM quality with CARDONE’s eco-friendly remanufacturing process, reducing energy and raw material use by up to 80%.
Key Features
-
OE-quality remanufacture ensures reliable performance and perfect fit
-
Triple-tested internal components guarantee consistent operation
-

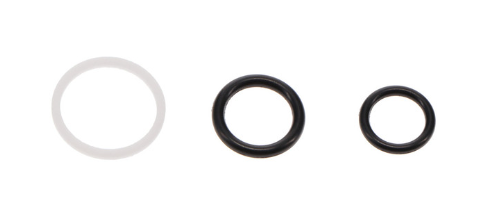

HNBR seals and O-rings provide superior heat and chemical resistance
-
Precision-machined shafts reduce wear and extend service life
-
Pre-calibrated pressure-relief valve ensures accurate hydraulic output
-
Reservoir included for direct bolt-on installation
-
Environmentally sustainable process saves up to 80% of new material energy usage
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Aluminum |
| Inlet Attachment / Diameter |
Barb / 0.423 in (10.74 mm) |
| Outlet Attachment / Thread |
Threaded / 16×1.5 |
| Pulley Attachment / Belt |
Press-On / Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Reservoir Included / Cap |
Yes / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross Reference
Ford: F0DZ3A674A, F1DZ3A674CBRM, F1SZ3A674A, F1SZ3A674CBRM, F57Z3A674A
Mercury: F0DZ3A674A, F1SZ3A674A, F57Z3A674A
Mazda: ZZL132600, ZZM032600, ZZM132600, ZZM132600A
Vehicle Compatibility
Reservoir included. For warranty protection, always flush the steering system, install an in-line filter, and use OE-specified power steering fluid.
Ford
-
Cougar (1991–1993 5.0L, without Electronic Variable Assist Steering)
-
F-100 Ranger (1996–1997 3.0L)
-
Ranger (1992–1997 3.0L)
-
Taurus (1990–1991 2.5L, 3.0L)
-
Thunderbird (1991–1993 5.0L, without Electronic Variable Assist Steering)
Mazda
-
B2300 (1995–1997 2.3L)
-
B3000 (1994–1997 3.0L)
-
B4000 (1995–1997 4.0L)
Mercury
Installation & Warranty Notes
-
Flush the entire steering system before installing the new pump.
-
Use only OE-approved power steering fluid for best results.
-
Install an in-line filter to prevent contamination and protect warranty coverage.
-
Confirm pulley press-fit depth and alignment before operation.
-
Check all O-rings, hose connections, and fittings for leaks before startup.
