Product Description

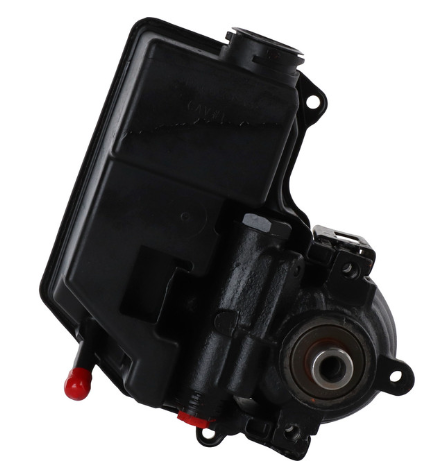

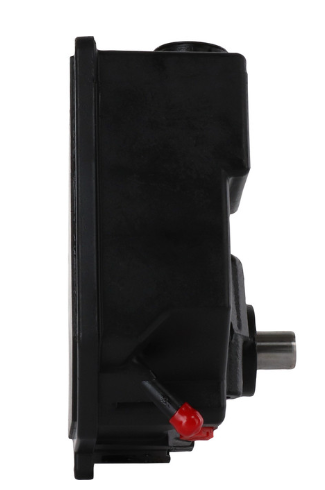

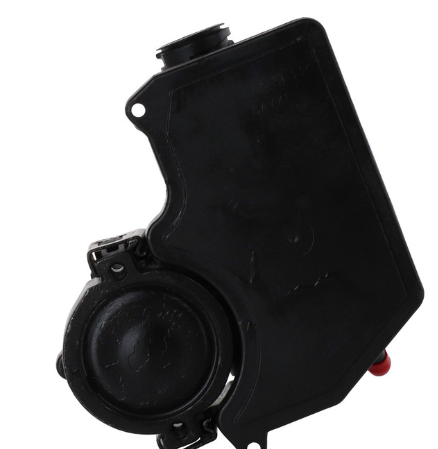

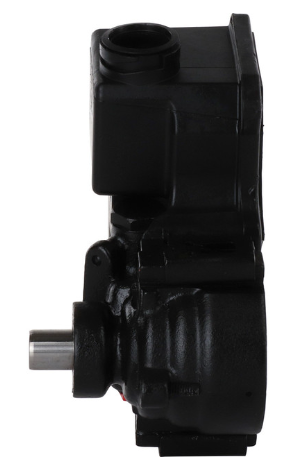

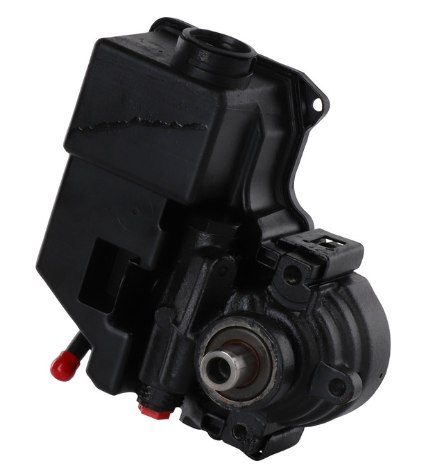

The CARDONE 20-66989 Remanufactured Power Steering Pump restores smooth, consistent steering performance for Chevrolet, GMC, and Isuzu midsize pickup applications. Each pump is remanufactured to meet or exceed OEM performance, combining precision engineering with proven durability for long service life.
All internal components—including cam packs, spool valves, and pressure-relief valves—are triple-tested to ensure leak-free reliability and quiet operation. Every pump is built with 100% new premium-grade HNBR seals and O-rings, which maintain flexibility and prevent breakdown under high heat and pressure.
Each assembly undergoes a complete hydraulic efficiency test measuring pressure, bypass, flow, steering effort, and noise performance. The result is a pump that performs and fits like new while using 80% less energy and raw materials compared to manufacturing a new unit.
Key Features
-
Meets or exceeds OE performance for pressure and flow consistency
-
Triple-tested internals (cam packs, spool valves, relief valves) for proven reliability
-
Premium HNBR seals withstand high temperatures and prevent leaks
-
Precision-machined shaft surfaces reduce seal wear and extend pump life
-
Computer-tested assembly for hydraulic efficiency and noise control
-
Reservoir included for direct-fit installation
-
Eco-friendly remanufacturing reduces energy and material use by up to 80%
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment / Diameter |
Barb / 0.423 in (10.74 mm) |
| Outlet Attachment / Thread |
Threaded / 16×1.5 |
| Pulley Attachment / Belt |
Press-On / Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Reservoir Included / Cap |
Yes / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross Reference
Chevrolet: 15192791
GMC: 15192791, 88965491
Isuzu: 26098206, 8151922840, 8151927910, 8889654910
Vehicle Compatibility
Reservoir included. For warranty protection, always flush the steering system, install an in-line filter, and use OE-approved fluid. All applications listed “without Aftermarket Filtration Improvement.”
Chevrolet
GMC
Isuzu
-
i-280 (2006 2.8L)
-
i-290 (2007–2008 2.9L)
-
i-350 (2006 3.5L)
-
i-370 (2007–2008 3.7L)
Installation & Warranty Notes
-
Flush the complete steering system before installation.
-
Use manufacturer-recommended power steering fluid only.
-
Install an in-line filter to protect the pump and validate warranty.
-
Verify proper pulley press depth and belt alignment.
-
Check O-ring condition and confirm 16×1.5 thread fitment before final assembly.
