Product Description

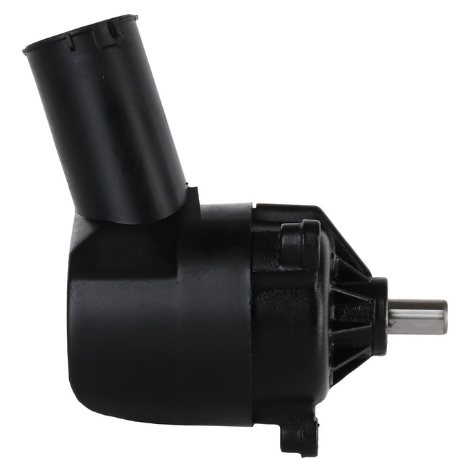

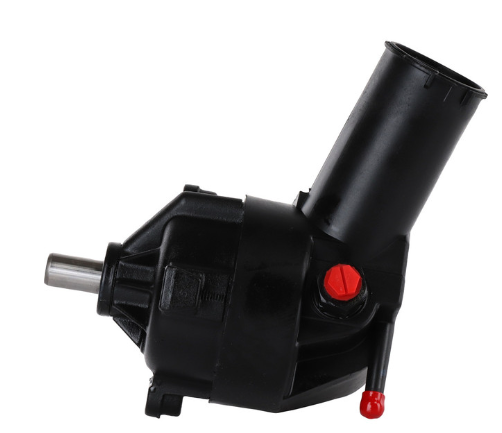

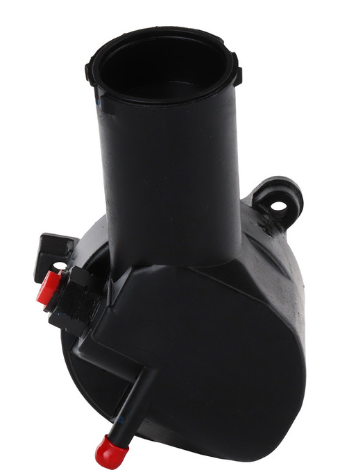

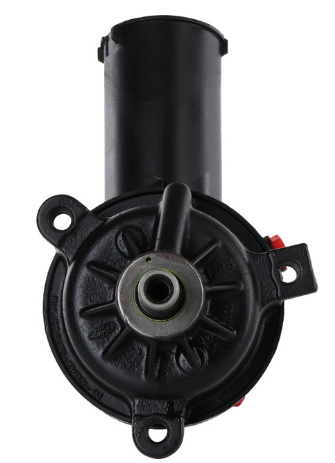

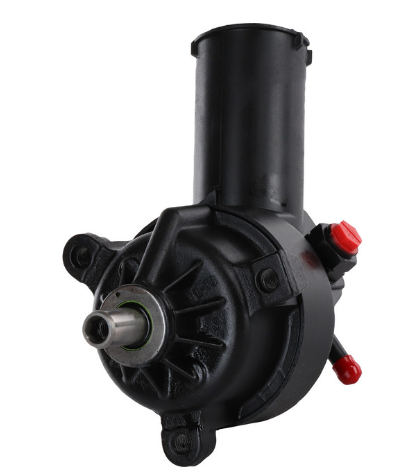

The CARDONE 20-6248 Remanufactured Power Steering Pump restores proper steering assist on select Ford, Mercury, and Lincoln applications. Each pump is engineered to meet or exceed OE standards, with rigorous testing for pressure, bypass, flow, valve operation, steering effort, and noise.
All critical components—including cam packs, spool valves, and relief valves—are triple-tested for consistent operation. Every unit is built using 100% new premium HNBR O-rings and seals to prevent leaks and withstand high fluid temperatures. Shafts are resurfaced to tight tolerances to reduce seal wear.
As an environmentally friendly remanufactured OE part, this unit conserves up to 80% of the energy and raw materials required to produce new parts while maintaining the same durability and fit.
Key Features
-
OE-level fit and performance validated by complete hydraulic testing
-
Triple-tested internals ensure long service life and quiet steering
-
Premium HNBR seals resist fluid and heat degradation
-
Precision-finished shaft reduces wear and prevents leaks
-
Calibrated pressure-relief valve maintains proper assist pressure
-
Reservoir included for direct installation
-
Environmentally responsible remanufacturing process
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Aluminum |
| Inlet Attachment / Diameter |
Barb / 0.423 in (10.74 mm) |
| Outlet Attachment / Thread |
Threaded / 5/8-18 |
| Pulley Attachment / Belt |
Press-On / Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Reservoir Included / Cap |
Yes / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross Reference
Ford: E5DZ3A674B, E5SZ3A674A, E6SZ3A674A, E6SZ3A674B, E6SZ3A674C
Mercury: E5DZ3A674B, E5SZ3A674A, E6SZ3A674A, E6SZ3A674B, E6SZ3A674C
Vehicle Compatibility
Reservoir included. For warranty protection, always flush the system, install an in-line filter, and use OE-approved power-steering fluid. Listed “without Aftermarket Filtration Improvement.”
Ford
-
Bronco II (1984–1989 2.8L / 2.9L / 2.3L)
-
Cougar (1985–1988 3.8L / 5.0L; before 07/1988 without Handling Suspension)
-
LTD (1983–1986 3.3L / 3.8L / 5.0L)
-
Mustang (1980–1988 2.3L / 3.3L / 3.8L / 4.2L / 5.0L manual & auto; before 07/1988 5.0L)
-
Ranger (1983–1989 2.0L / 2.2L / 2.3L / 2.8L / 2.9L)
-
Thunderbird (1982–1988 3.3L / 3.8L / 5.0L; with or without Handling Suspension)
Mercury
-
Capri (1980–1986 2.3L / 3.3L / 3.8L / 4.2L / 5.0L)
-
Cougar (1982–1988 3.3L / 3.8L / 5.0L; before 07/1988 without Handling Suspension)
-
Marquis (1983–1986 3.3L / 3.8L)
Installation & Warranty Notes
-
Flush the complete steering system before installation.
-
Always use manufacturer-approved fluid.
-
Install an in-line filter to preserve warranty coverage.
-
Confirm pulley press-fit depth, belt alignment, and O-ring condition.
-
Verify hose thread size (5/8-18) before reconnecting fittings.
