Product Description

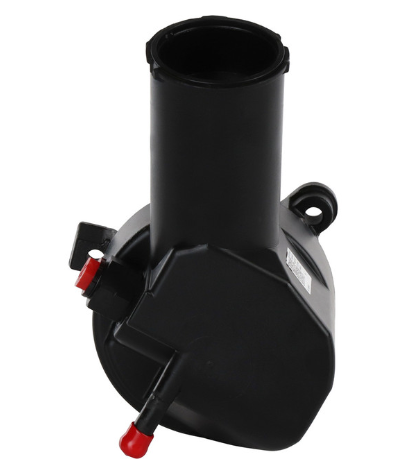

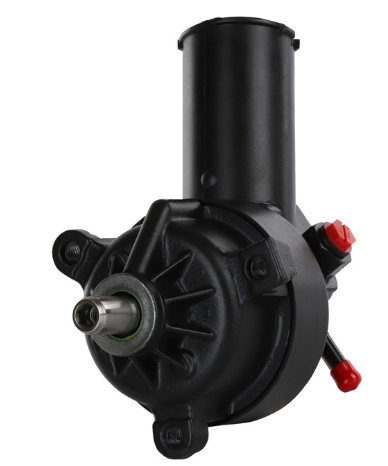

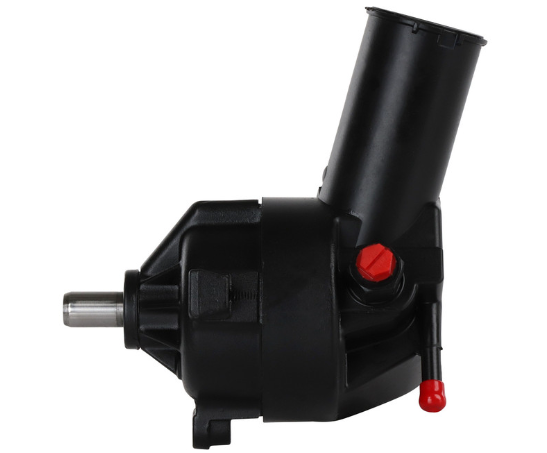

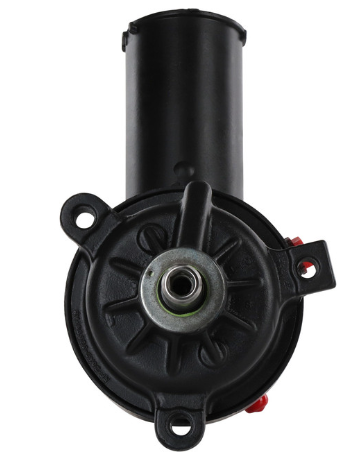

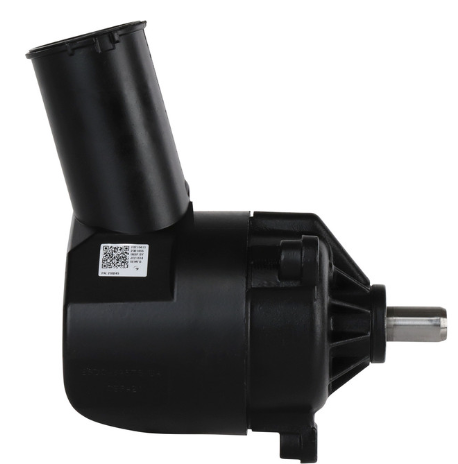

The CARDONE 20-6245 Remanufactured Power Steering Pump delivers reliable hydraulic assist and long service life for Ford, Lincoln, and Mercury vehicles across the 1980s. Each unit is remanufactured to meet or exceed OE standards, with upgraded materials and precision machining to ensure leak-free performance and smooth, quiet operation.
Critical internal components—including cam packs, spool valves, and shafts—are triple-tested for reliability. Pumps feature 100% new premium HNBR seals that resist high heat and fluid degradation. Each unit is tested for pressure, bypass, flow, steering effort, and noise, ensuring consistent performance and factory-correct steering feel.
As an environmentally responsible remanufactured OE part, this pump conserves up to 80% of the energy and raw materials required for new production while maintaining OE fit and function.
Key Features
-
OE-quality performance verified by complete hydraulic testing
-
Triple-tested internal components for quiet, dependable service
-
Premium HNBR seals for superior resistance to heat and fluid breakdown
-
Precision-machined shaft eliminates premature seal wear
-
Calibrated relief valve for consistent steering effort
-
Reservoir included for plug-and-play installation
-
Eco-conscious remanufacturing process reduces waste and energy use
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Aluminum |
| Inlet Attachment / Diameter |
Barb / 0.423 in (10.74 mm) |
| Outlet Attachment / Thread |
Threaded / 5/8-18 |
| Pulley Attachment / Belt |
Press-On / Serpentine |
| Pulley Included |
No |
| Remote Reservoir |
No |
| Reservoir Included / Cap |
Yes / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross Reference
Lincoln: E1LY3A674A, E5LY3A674B, E6LY3A674B, E6VY3A674A, E8LY3A674B
Mercury: E6AZ3A674A, E6VY3A674A
Ford: E6AZ3A674A, E6VY3A674A
Vehicle Compatibility
Reservoir included. For warranty protection, always flush the system, install an in-line filter, and use OE-approved power steering fluid.
Ford
-
Country Squire (1987–1989, 5.0L)
-
LTD (1981–1986, 2.3L / 3.3L / 3.8L / 4.2L / 5.0L / 5.8L)
-
LTD Crown Victoria (1987–1989, 5.0L / 5.8L)
Lincoln
-
Continental (1980, 5.0L / 5.8L; 1988–1989, 3.8L)
-
Mark VII (1984–1985, 2.4L with Handling Suspension; 1984–1989, 5.0L)
-
Town Car (1981–1989, 5.0L)
Mercury
-
Colony Park (1987–1989, 5.0L)
-
Grand Marquis (1980–1989, 4.2L / 5.0L / 5.8L)
-
Marquis (1980–1982, 4.2L / 5.0L / 5.8L)
Installation & Warranty Notes
-
Flush the entire steering system prior to installation to remove contaminants.
-
Use manufacturer-recommended power steering fluid only.
-
Install an in-line filter to maintain warranty and prevent premature failure.
-
Confirm pulley press depth and belt alignment during assembly.
-
Check O-ring condition and thread compatibility (5/8-18) before reconnecting hoses.
