Product Description

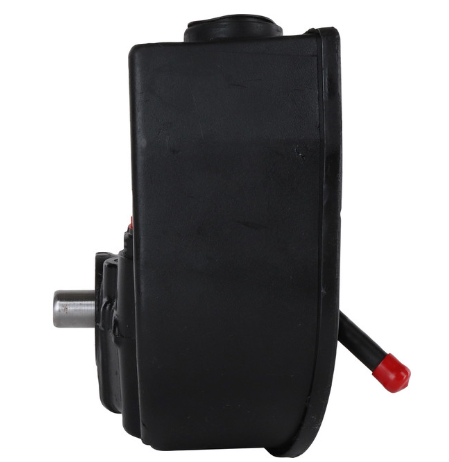

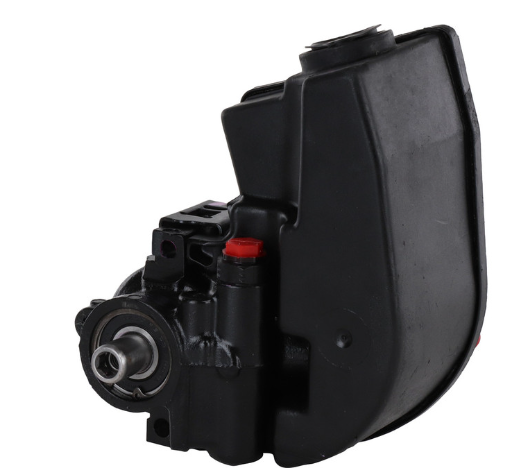

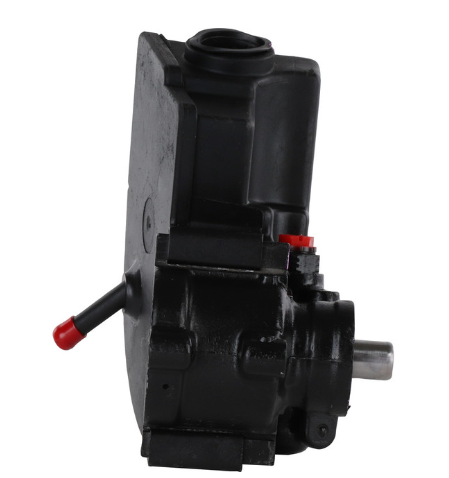

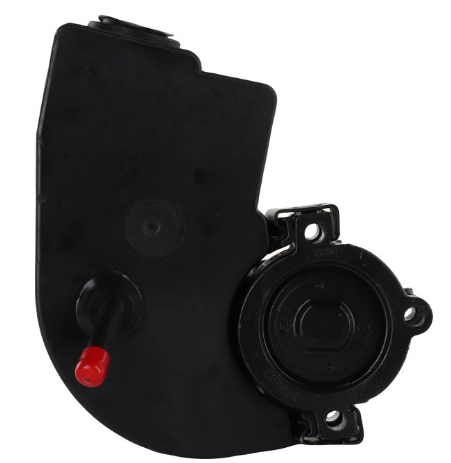

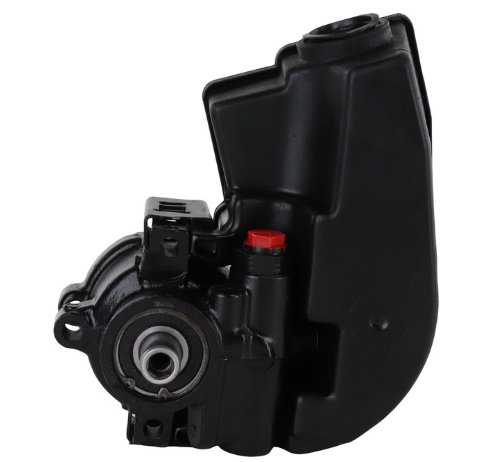

The CARDONE 20-38771 Remanufactured Power Steering Pump restores smooth and precise steering performance for Jeep 4.0L engines (1996–2003). Engineered to meet or exceed original equipment standards, this pump ensures reliable hydraulic performance, quiet operation, and long service life even in demanding off-road or rugged driving conditions.
Each unit is carefully disassembled, inspected, and re-engineered for improved durability. Critical components—including spool valves and cam packs—are triple-tested, while precision-ground shafts eliminate friction and premature wear. Premium-grade HNBR O-rings and seals resist heat and fluid breakdown for leak-free operation.
Built through CARDONE’s eco-conscious remanufacturing process, this pump saves up to 80% of energy and raw materials compared to producing a new part—without compromising quality or reliability.
Key Features
-
Triple-tested spool valves and cam packs for enhanced reliability and steering consistency
-
100% new premium HNBR seals for superior high-temperature and chemical resistance
-
Precision-machined shafts prevent early seal wear and reduce pump noise
-
Pressure relief valves are fully tested and calibrated to maintain consistent steering effort
-
Factory-quality remanufacturing ensures OE fit and long-lasting durability
-
Reservoir included for a complete installation solution
-
Environmentally friendly rebuild process conserves materials and energy
Technical Specifications
| Specification |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment / Diameter |
Barb / 0.423 IN (10.74 MM) |
| Outlet Attachment / Thread |
Threaded / 16x1.5 |
| Pulley Attachment / Included |
Press-On / No
|
| Belt Type |
Serpentine |
| Remote Reservoir |
No |
| Reservoir Included / Cap |
Yes / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Jeep: 52087871, 52087871AB, 52087871AD
Vehicle Compatibility (Highlights)
Reservoir included. For warranty purposes, always flush the system, use OE-specified fluid, and install an in-line filter for optimal performance.
-
Jeep Cherokee (1996–2001, 4.0L) – With reservoir
-
Jeep TJ (1997–2003, 4.0L) – With reservoir
-
Jeep Wrangler (1997–2003, 4.0L) – With reservoir
Installation & Warranty Notes
-
Flush the entire power steering system before installation to prevent contamination.
-
Use only OE-approved steering fluid for consistent performance.
-
Install an in-line filter to protect internal components and maintain warranty coverage.
-
Check belt tension, pulley alignment, and hose condition during installation.
