Product Description

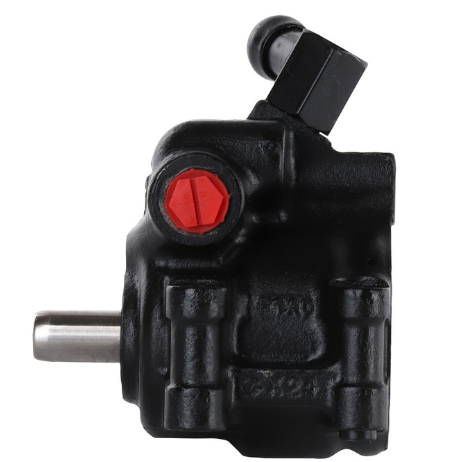

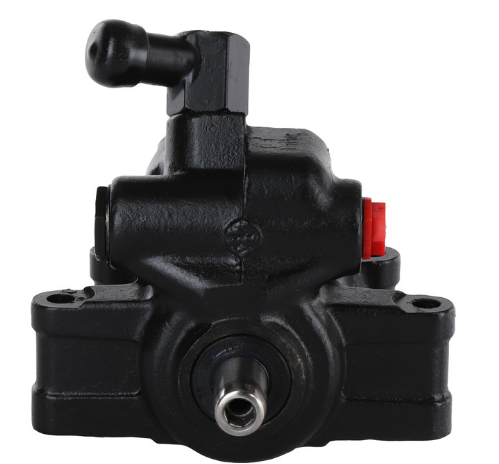

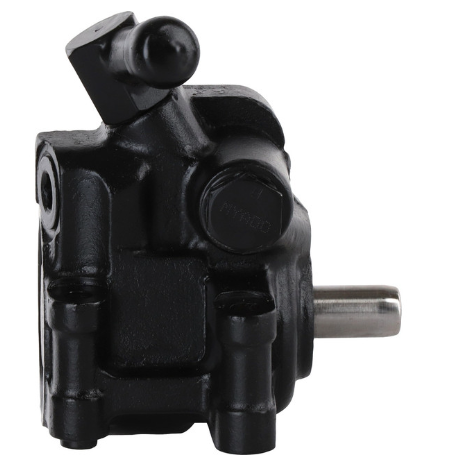

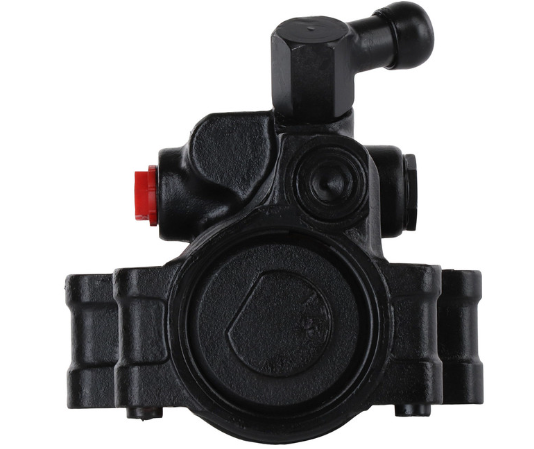

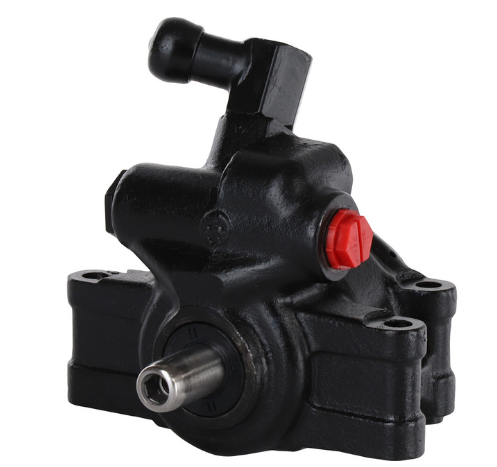

The CARDONE 20-369 Remanufactured Power Steering Pump is built to restore smooth, responsive steering performance in 2005–2008 Ford F-150 4.2L models. Each unit is meticulously engineered to meet or exceed OE standards, with every design scrutinized for potential improvement and durability enhancement.
Every pump undergoes comprehensive hydraulic efficiency testing to verify proper pressure, fluid flow, and noise-free operation. Components such as cam packs and spool valves are triple-tested, and all seals are replaced with premium-grade HNBR O-rings for superior temperature resistance and leak prevention.
CARDONE’s environmentally conscious remanufacturing process reduces energy and material usage by up to 80% compared to new production, ensuring both performance and sustainability.
Key Features
-
Triple-tested components (cam packs, spool valves, etc.) for maximum reliability
-

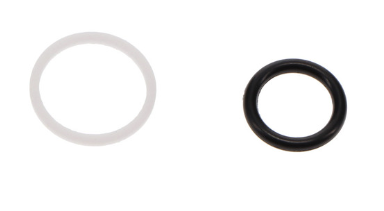

100% new HNBR seals and O-rings resist high temperatures and fluid breakdown
-
Precision-machined shafts minimize wear and extend pump life
-
Fully tested and calibrated pressure relief valves ensure OE-grade hydraulic control
-
Computer-tested assembly for flow, pressure, valve operation, and steering effort
-
Exact-fit design guarantees seamless installation and performance match
-
Eco-friendly remanufacturing reduces waste and conserves resources
Technical Specifications
| Spec |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment / Diameter |
Barb / 0.691 IN (17.55 MM) |
| Outlet Attachment / Thread |
Threaded / 16x1.5 |
| Pulley Attachment / Included |
Press-On / No
|
| Belt Type |
Serpentine |
| Remote Reservoir |
Yes |
| Reservoir Included / Cap |
No / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Ford: 5L3Z3A696A, 6L3Z3A674BA, 7L3Z3A674B, 7L3Z3A674DRM
Vehicle Compatibility (Highlights)
Reservoir not included. Always flush the system, use OE-specified fluid, and install an in-line filter for warranty and long-term performance.
Installation & Warranty Notes
-
Flush the power steering system before installation to prevent contamination.
-
Use OE-recommended power steering fluid for proper lubrication and performance.
-
Install an in-line filter to safeguard the pump and maintain warranty coverage.
-
Inspect hoses, pulleys, and belts for alignment and wear prior to startup.
