Product Description

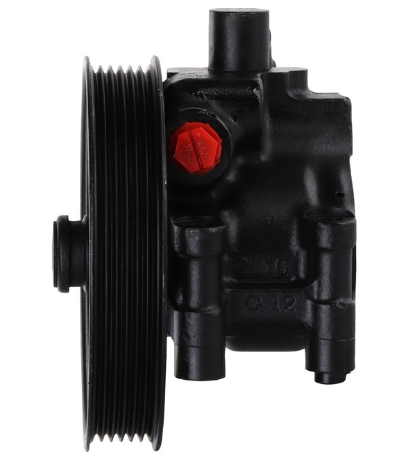

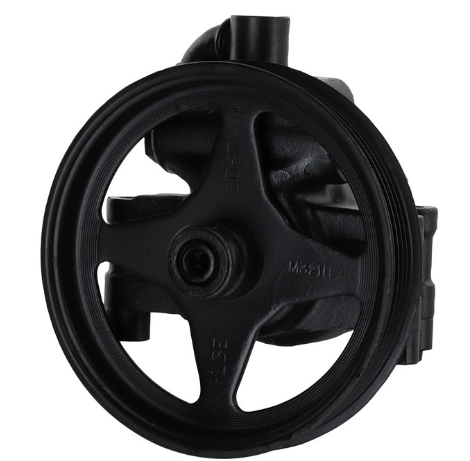

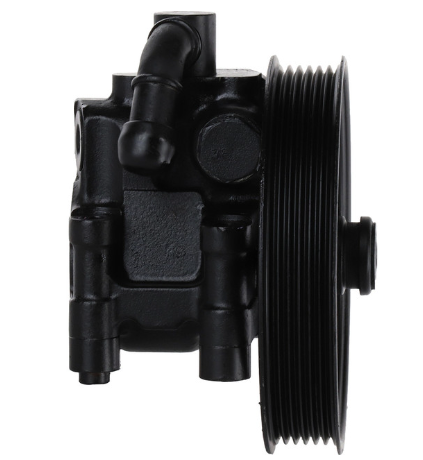

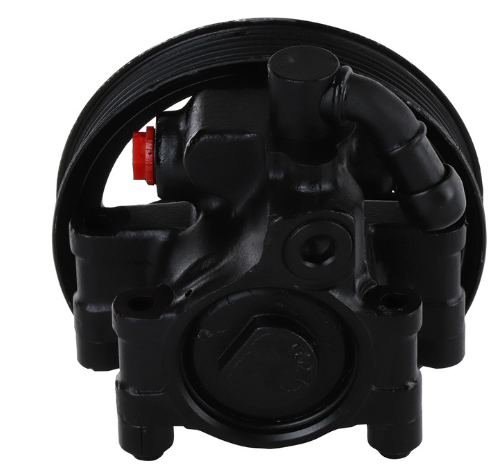

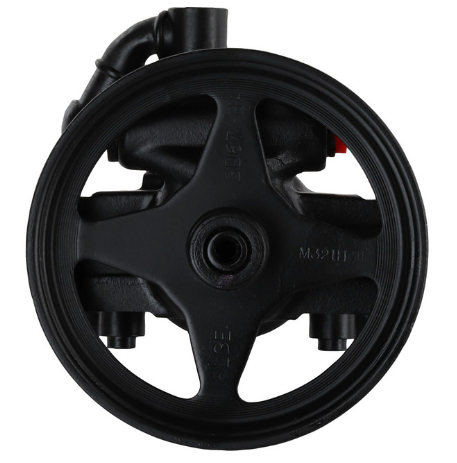

The CARDONE 20-312P1 Remanufactured Power Steering Pump offers original-equipment performance and a perfect vehicle fit. Designed for Ford and Lincoln full-size SUVs and trucks, this unit is built for long-lasting reliability with 100% new HNBR seals, precision-machined shafts, and triple-tested internal components. Each pump undergoes a hydraulic efficiency test to confirm pressure, flow, and noise performance. CARDONE’s eco-conscious remanufacturing process saves up to 80% of the energy and raw materials used in new part production.
Key Features
-
Triple-tested components (cam packs, spool valves, etc.) for dependable performance
-

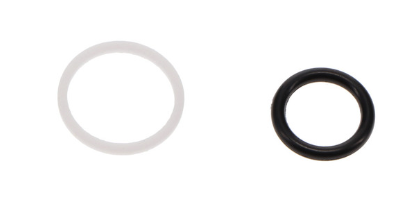

Premium HNBR seals and new O-rings ensure leak-free operation and high heat resistance
-
Precision-ground shafts eliminate early seal wear and extend pump service life
-
Pressure relief valves tested and calibrated to OE specifications
-
Computer-tested to verify flow, pressure, bypass, and steering effort consistency
-
Supplied with pulley for simplified, direct installation
Technical Specifications
| Spec |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment / Diameter |
Barb / 0.786 IN (19.96 MM) |
| Outlet Attachment / Thread |
Threaded / 16x1.5 |
| Pulley Attachment / Included |
Press-On / Yes
|
| Belt Type |
Serpentine |
| Remote Reservoir |
Yes |
| Reservoir Included / Cap |
No / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Ford: 2L7Z3A674BARM, 2L7Z3A674CARM, 6L3Z3A674B, 6L3Z3A674C, 7L3Z3A674C
Vehicle Compatibility (Highlights)
Reservoir not included. Always flush the system, use OE-specified fluid, and install an in-line filter for warranty and longevity.
-
Ford Expedition (2003–2006 5.4L, 2003–2004 4.6L)
-
Ford F-150 (2004–2008 4.2L / 4.6L / 5.4L)
-
Ford Lobo (2004–2008 4.6L / 5.4L)
-
Lincoln Mark LT (2006–2008 5.4L)
-
Lincoln Navigator (2003–2006 5.4L)
Installation & Warranty Notes
-
Flush the system completely before installation to remove contaminants.
-
Use only OE-approved steering fluid for best results.
-
Install an in-line filter to protect the system and maintain warranty coverage.
-
Verify pulley alignment, hose integrity, and belt condition prior to startup.
