Product Description

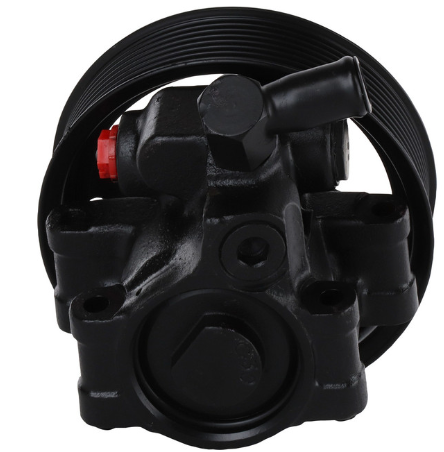

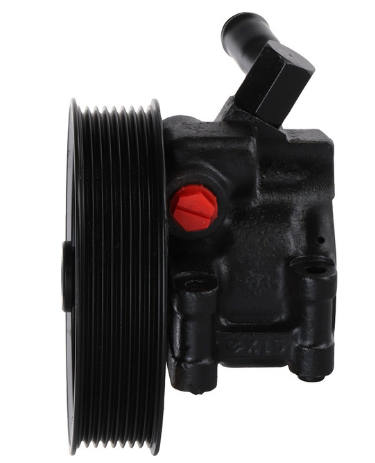

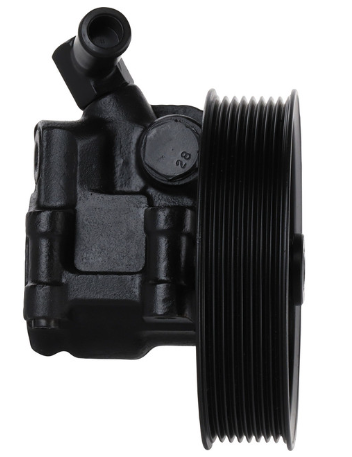

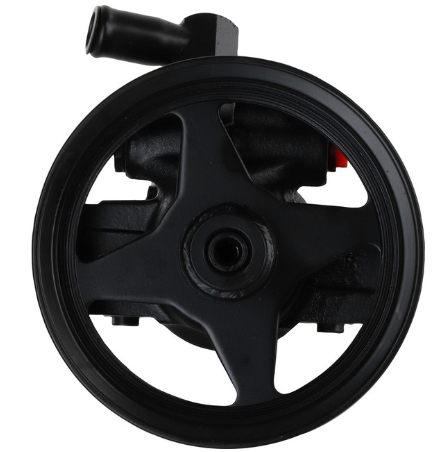

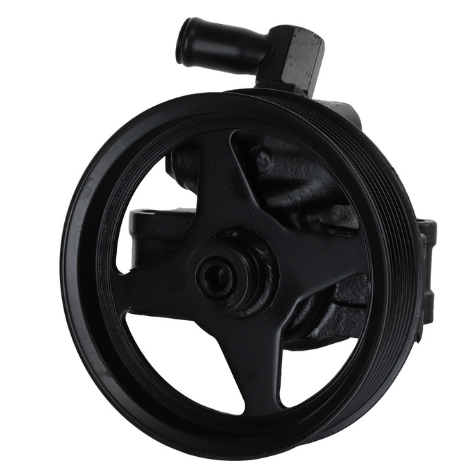

The CARDONE 20-283P2 Remanufactured Power Steering Pump restores OE steering assist with durability upgrades. Every unit uses 100% new HNBR seals, precision-finished shafts, and triple-tested internals for quiet, leak-free performance. Final assembly is computer-tested (pressure, bypass, flow, steering effort, noise) to guarantee OE-fit function. Remanufacturing saves up to 80% energy and raw materials versus new.
Key Features
-
Triple-tested cam packs & spool valves for reliability
-
100% new HNBR O-rings/seals for heat and fluid resistance
-
Precision-machined shafts reduce seal wear and extend life
-
Calibrated pressure-relief valve ensures correct hydraulic output
-
Computer-tested for pressure, flow, steering effort, and noise
-
Direct-fit reman OE unit; supplied with pulley (P2 variant; see groove notes below)
Technical Specifications
| Spec |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment / Diameter |
Barb / 0.786 IN (19.96 MM) |
| Outlet Attachment / Thread |
Threaded / 16x1.5 |
| Pulley Attachment / Included |
Press-On / Yes
|
| Belt Type |
Serpentine |
| Remote Reservoir |
Yes |
| Reservoir Included / Cap |
No / No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Ford: 1C2Z3A674AARM, 1C2Z3A674BARM, 2C2Z3A674BARM, 2C2Z3A674CARM, 2C2Z3A674EARM, 5C2Z3A674A, F7UZ3A674CA, F8UZ3A674ACRM
Vehicle Compatibility (Highlights)
Reservoir not included. Supplied with pulley. Always flush the system, use OE-specified fluid, and install an in-line filter for warranty and longevity.
Ford Vans
-
E-150 / E-150 Econoline (+ Club Wagon): 4.6L & 5.4L (1997–2002); some listings specify with 8-groove pulley for MY 2001–2002.
-
E-250 Econoline: 5.4L (1997–2001) plus 2001 models with 8-groove pulley; includes Cutaway/Extended/Standard Cargo variants by year.
-
E-350 Club Wagon / Econoline / Super Duty: 5.4L, 6.0L, 6.8L, 7.3L (1997–2004; includes Extended/Standard/Cutaway variants by year).
-
E-450 / E-550 (Econoline Super Duty & Super Duty): 5.4L, 6.0L, 6.8L, 7.3L (1999–2004; many Cutaway applications).
Ford SUVs & Trucks
-
Excursion: 5.4L, 6.8L, 7.3L (2000–2002; select listings call out 8-groove pulley in 2002).
-
F-250 / F-350 / F-450 / F-550 Super Duty: 5.4L, 6.8L, 7.3L (1999–2002; several 2002 applications specify with 8-groove pulley).
The full fitment you provided includes detailed body styles, cutaway/extended variants, and groove-count qualifiers by year/engine.
Installation & Warranty Notes
-
Flush the system completely before installation.
-
Use OE-specified power steering fluid only.
-
Install an in-line filter to protect the pump and maintain warranty.
-
Inspect hoses, reservoir, pulley alignment, and belt condition; replace if worn.
