Product Description

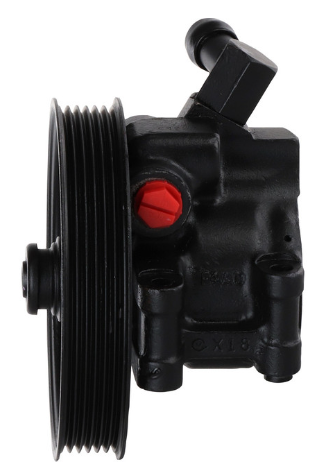

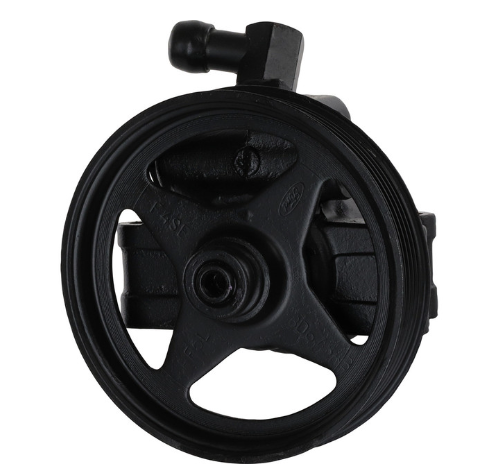

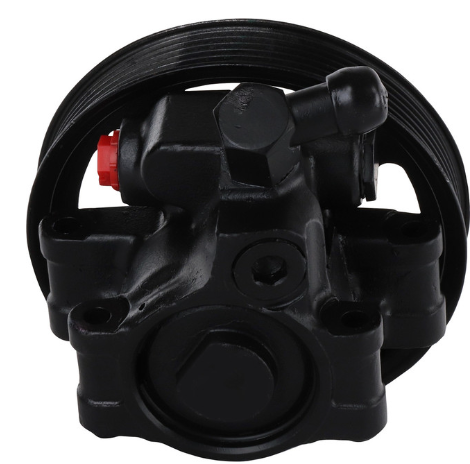

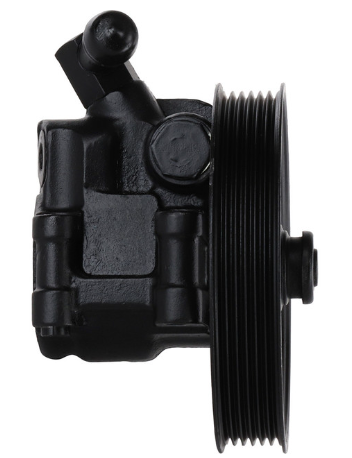

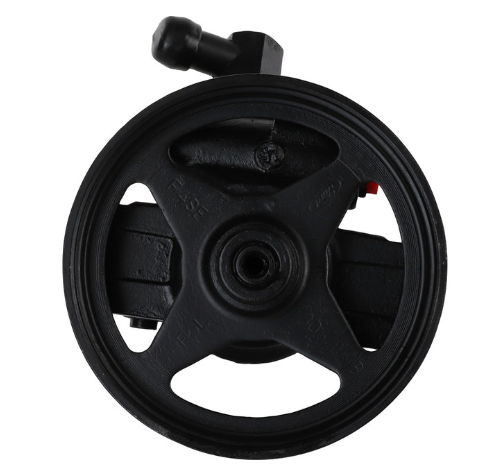

The CARDONE 20-282P1 Remanufactured Power Steering Pump is engineered to restore original steering performance while providing long-lasting reliability. Each pump is built using premium HNBR seals, precision-machined components, and triple-tested internal mechanisms to eliminate leaks and ensure consistent hydraulic performance. CARDONE’s rigorous remanufacturing process not only matches but often exceeds OE performance standards, while reducing energy and raw material use by up to 80% for an eco-friendly solution.
Key Features
-
Triple-tested internal components (cam packs, spool valves, etc.) ensure maximum reliability and consistent steering feel.
-

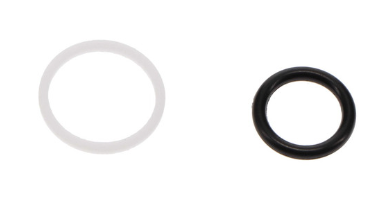

100% new HNBR O-rings and seals resist heat and chemical breakdown.
-
Precision-machined shafts prevent premature wear for long service life.
-
Calibrated pressure relief valves guarantee proper hydraulic performance.
-
Computer-tested assemblies validate pressure, flow, steering effort, and noise.
-
Supplied with pulley for simplified installation and direct fitment.
-
Eco-friendly remanufacturing reduces waste and energy consumption.
Technical Specifications
| Spec |
Detail |
| Filter Included |
No |
| Hose Port Type |
O-Ring |
| Housing Material |
Cast Iron |
| Inlet Attachment Type |
Barb |
| Inlet Diameter |
0.691 IN (17.55 MM) |
| Inlet Quantity |
1 |
| Outlet Attachment Type |
Threaded |
| Outlet Quantity |
1 |
| Outlet Thread Size |
16x1.5 |
| Pulley Attachment Type |
Press-On |
| Pulley Belt Type |
Serpentine |
| Pulley Included |
Yes |
| Remote Reservoir |
Yes |
| Reservoir Included |
No |
| Reservoir Cap Included |
No |
| Mounting Hardware Included |
No |
| Shaft Type |
Press-On |
| Type |
Hydraulic |
OE Cross References
Ford: 2L3Z3A674AARM, 2L3Z3A674CBRM, 5L3Z3A696A, 7L3Z3A674DRM, F65Z3A674AA, F85Z3A674AA
Vehicle Compatibility
| Year |
Make |
Model |
Engine |
Notes |
| 1999 – 2002 |
Ford |
Crown Victoria |
4.6L |
Reservoir Not Included; Supplied With Pulley; With Police/Fleet/Taxi Packages |
| 1997 – 2003 |
Ford |
F-150 |
4.2L |
Reservoir Not Included; Supplied With Pulley; Install Filter & Use OE Fluid |
| 2002 – 2003 |
Ford |
F-150 |
4.6L |
Reservoir Not Included; Supplied With 6-Groove Pulley; Install Filter & Flush System |
| 1997 |
Ford |
F-150 |
4.9L |
Reservoir Not Included; Supplied With Pulley; Use OE Fluid |
| 2002 – 2003 |
Ford |
F-150 |
5.4L |
Reservoir Not Included; Supplied With 6-Groove Pulley; Install Filter & Use OE Fluid |
| 2004 |
Ford |
F-150 Heritage |
4.2L |
Reservoir Not Included; Supplied With Pulley; Flush System Before Installation |
| 2004 |
Ford |
F-150 Heritage |
4.6L |
Reservoir Not Included; With 6-Groove Pulley; Supplied With Pulley |
| 2004 |
Ford |
F-150 Heritage |
5.4L |
Reservoir Not Included; With 6-Groove Pulley; Supplied With Pulley |
Installation & Warranty Notes
-
Flush the steering system thoroughly before installation to remove debris and old fluid.
-
Use manufacturer-recommended power steering fluid only to ensure compatibility.
-
Install an in-line filter during installation to maintain warranty coverage and system longevity.
-
Inspect all hoses, fittings, and brackets for cracks or wear before reassembly.
