Description

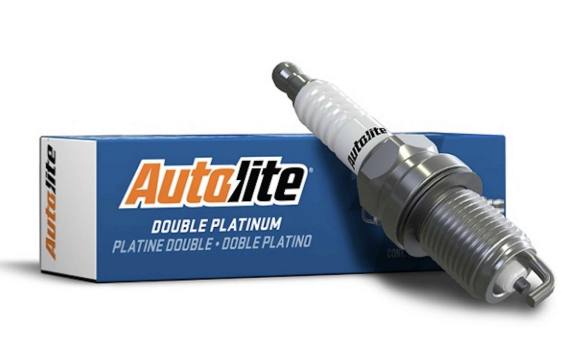

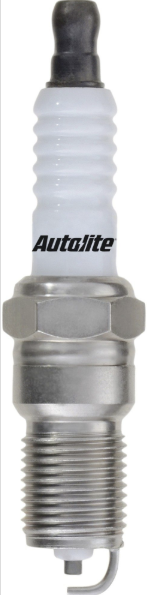

The Autolite APP5245 is a double platinum spark plug built for longer life and reliable performance, especially in DIS (distributorless ignition system) applications. Its platinum-to-platinum design helps reduce gap erosion and misfires compared with standard copper or single-platinum plugs.
Key Features
-
Double platinum design for longer service life
- Helps reduce gap erosion
- Helps reduce misfires
-
High alumina ceramic insulator for thermal conductivity and dielectric strength
-
Multi-rib insulator helps prevent flashover
-
Yttrium-enhanced ground electrode for durability under high heat and pressure
- 5-year limited warranty
Specifications
-
Part Number: APP5245
-
Brand: Autolite
-
Plug Type: Double Platinum
-
Resistance: 4000 ohms
-
Resistor Type: Yes
-
Thread Size: M14 - 1.25
-
Thread Diameter: 14 mm
-
Seat Type: Tapered
-
Reach: 0.679 in / 17 mm
-
Hex Size: 5/8 in
-
Terminal Type: Non-removable nut
-
Center Electrode Core Material: Copper
-
Center Electrode Tip Material: Platinum
-
Ground Electrode Core Material: Nickel
-
Ground Electrode Tip Material: Platinum
-
Ground Electrode Quantity: 1
-
Insulator Material: Ceramic
-
Center Electrode Projection: Long projection
-
Center Electrode Insulator Tip Projection: 0.19 in / 4.8 mm
-
Grade Type: Performance
-
Manufacturer Heat Range: 10
-
Washer Included: No
-
Skirt: Yes
-
Indexed: No
Fitment Overview
This plug fits a wide range of GM, Cadillac, Buick, Chevrolet, GMC, Hummer, Pontiac, Oldsmobile, Saab, Isuzu, and Workhorse applications, especially:
-
GM V8 trucks and SUVs with 4.8L, 5.3L, 6.0L, 6.2L, and 8.1L engines
-
LS-based performance cars like:
- Chevrolet Corvette
- Chevrolet Camaro
- Pontiac Firebird
- Pontiac GTO
- Cadillac CTS
- Various older GM passenger cars with:
- 2.0L / 2.2L I4
- 2.8L / 3.1L V6
Best Use Case
This is a strong choice for:
- Vehicles that originally specify double platinum plugs
- GM DIS ignition systems
- Drivers wanting better longevity than copper plugs
- Daily-driven V8 trucks, SUVs, vans, and performance cars needing OE-style replacement
Summary
The Autolite APP5245 is a performance-grade double platinum spark plug designed for durability, reduced erosion, and longer service life. It is especially well suited to many GM truck, SUV, van, and V8 performance applications, plus a number of older GM 4-cylinder and V6 models.
