Description

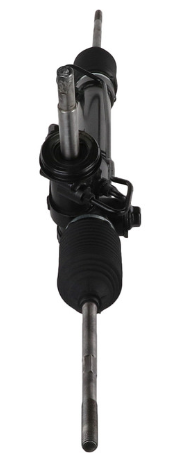

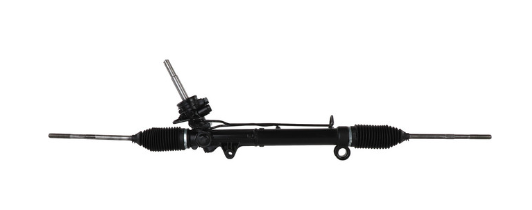

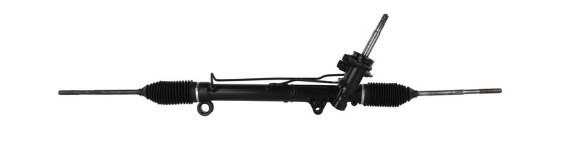

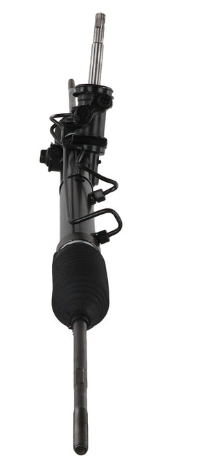

The CARDONE 22-164 Remanufactured Rack & Pinion Assembly is engineered to restore original steering performance and handling precision for a wide range of GM vehicles, including Buick Rendezvous, Chevrolet Venture, Pontiac Montana/Aztek, and Oldsmobile Silhouette. Each unit is completely remanufactured and tested to ensure OE-level steering feel, hydraulic assist, and durability.
All components are inspected, machined, and renewed to meet or exceed original factory specifications. Each rack includes 100% new O.E.-style O-rings, seals, and valve components for long-lasting, leak-free performance. A protective anti-corrosion finish safeguards against rust and wear, while precision machining ensures tight sealing and smooth hydraulic operation.
Every unit is hydraulically tested for flow, pressure, and performance, guaranteeing a perfect fit and reliable operation straight out of the box.
Key Features & Benefits
-
OE-Quality Fit & Performance: Direct-fit replacement built to original specifications.
-
100% Leak-Free Guarantee: New O-rings, seals, and valve components ensure reliable operation.
-
Fully Tested: Each unit undergoes hydraulic and performance testing to confirm flow, pressure, and performance.
-
Durable and Rust-Resistant: Protective coating extends the life of the unit and prevents corrosion.
-
Ready for Installation: Includes inner tie rods, mounting bushings, and sealing kit for easy setup.
-
Environmentally Friendly: Remanufacturing process reduces energy and raw material use by up to 80%.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns Lock-to-Lock |
3.0625 |
| Input Shaft Type |
Double Flat |
| Steering Input Shaft Diameter |
16.78 mm (0.661 in) |
| End-to-End Length |
1241.42 mm (48.875 in) |
| Inlet Line Fitting |
17.83 mm (0.702 in), Male |
| Outlet Line Fitting |
11.66 mm (0.459 in), Male |
| Mounting Hole Quantity |
2 |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Included |
| Gasket/Seal |
Included |
| Bellows Color |
Black |
| Package Weight |
17.70 lb |
| e-Waste |
No |
OEM Cross References
-
Oldsmobile: 21011026, 26044475, 26053458, 26065032, 26065144
-
Pontiac: 21011026, 26044475, 26053458, 26065032, 26065144
-
Chevrolet: 26044475, 26053458, 26065032, 26065144
-
Buick: 26044475, 26053458
Vehicle Fitment
For vehicles equipped with Hydraulic Power Steering.
Includes Inner Tie Rods.
| Year(s) |
Make |
Model |
Engine |
Drive |
Notes |
| 2002–2005 |
Buick |
Rendezvous |
3.4L |
FWD |
Hydraulic Power Steering |
| 2006–2007 |
Buick |
Rendezvous |
3.5L |
FWD |
Hydraulic Power Steering |
| 2004–2006 |
Buick |
Rendezvous |
3.6L |
FWD |
Hydraulic Power Steering |
| 1997–2001 |
Chevrolet |
Venture |
3.4L |
— |
Hydraulic Power Steering |
| 2002–2005 |
Chevrolet |
Venture |
3.4L |
FWD |
Hydraulic Power Steering |
| 1997–2001 |
Oldsmobile |
Silhouette |
3.4L |
— |
Hydraulic Power Steering |
| 2002–2004 |
Oldsmobile |
Silhouette |
3.4L |
FWD |
Hydraulic Power Steering |
| 2001–2005 |
Pontiac |
Aztek |
3.4L |
FWD |
Hydraulic Power Steering |
| 1999–2001 |
Pontiac |
Montana |
3.4L |
— |
Hydraulic Power Steering |
| 2002–2005 |
Pontiac |
Montana |
3.4L / 3.5L |
FWD |
Hydraulic Power Steering |
| 1997–1998 |
Pontiac |
Trans Sport |
3.4L |
— |
Hydraulic Power Steering |
Installation Tip: Always flush the system and refill with OE-specified fluid before installation. Installing an in-line steering filter is strongly recommended to ensure long-term performance and warranty compliance.
