Description

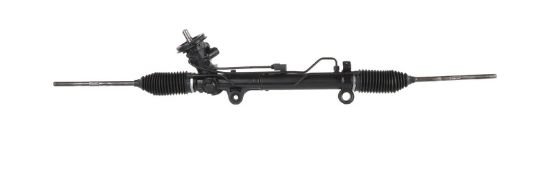

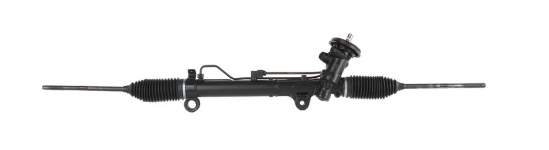

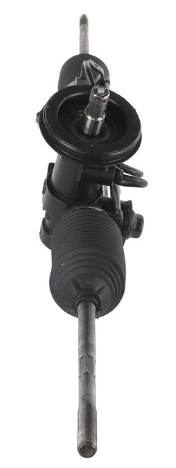

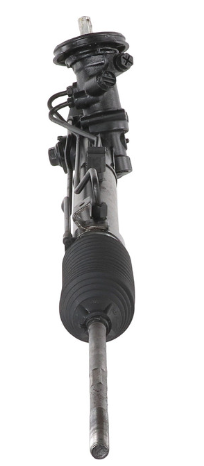

The CARDONE 22-1143 Remanufactured Rack & Pinion Assembly is a precision-engineered solution designed to restore original steering performance in Chevrolet Impala models. Each unit is meticulously remanufactured and tested to meet or exceed OEM standards, ensuring dependable performance, steering precision, and durability.
Every rack is fitted with 100% new OE-style seals, O-rings, and spool valve components to eliminate leaks and maintain consistent steering assist. Housing surfaces are machined to exact tolerances, preventing fluid cross-leakage between chambers and extending service life. Each assembly receives a protective anti-corrosion coating, ensuring long-term reliability in all driving conditions.
Environmentally conscious manufacturing reduces the need for new raw materials and energy by up to 80%, maintaining both performance and sustainability.
Key Features & Benefits
-
OEM-Grade Fit and Function: Direct-fit replacement ensures quick installation with no modifications.
-
100% Tested for Quality: Each unit undergoes hydraulic, performance, and leak testing to ensure factory-level operation.
-
Durable Construction: Polished micro-finish valve sleeves provide smooth operation and extended service life.
-
New OE-Style Seals: Guarantees leak-free, long-lasting performance.
-
Protective Coating: Guards against corrosion and wear.
-
Includes Inner Tie Rods: Complete and ready for installation.
-
Eco-Friendly Remanufacturing: Saves energy and materials compared to new production.
Technical Specifications
| Specification |
Detail |
| Type |
Hydraulic |
| Total Turns Lock-to-Lock |
2.3125 |
| Input Shaft Type |
Double Flat |
| Steering Input Shaft Diameter |
19.91 mm (0.784 in) |
| End-to-End Length |
1260.47 mm (49.625 in) |
| Inlet Line Fitting |
17.83 mm (0.702 in), Male |
| Outlet Line Fitting |
11.66 mm (0.459 in), Male |
| Mounting Hole Quantity |
2 |
| Inner Tie Rods Included |
Yes |
| Outer Tie Rods Included |
No |
| Mounting Brackets |
Not Included |
| Mounting Hardware |
Included |
| Gasket/Seal |
Included |
| Bellows Color |
Black |
| Package Weight |
19.00 lb |
| e-Waste |
No |
OEM Cross References
Vehicle Fitment
Fits models equipped with Hydraulic Power Steering and compatible suspension options (FE1, FE2, 7B3).
Includes Inner Tie Rods.
| Year(s) |
Make |
Model |
Engine |
Notes |
| 2012–2013 |
Chevrolet |
Impala |
3.6L |
With Ride Handling (FE2), Soft Ride (FE1), or Special Handling (7B3) Suspension |
| 2014–2016 |
Chevrolet |
Impala Limited |
3.6L |
With Ride Handling (FE2), Soft Ride (FE1), or Special Handling (7B3) Suspension |
Installation Tip: Always flush the steering system, use OE-specified fluid, and install an in-line filter to maintain warranty coverage and performance integrity.
