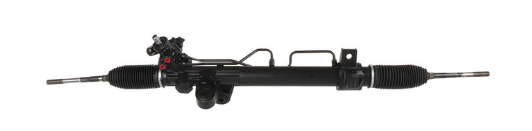

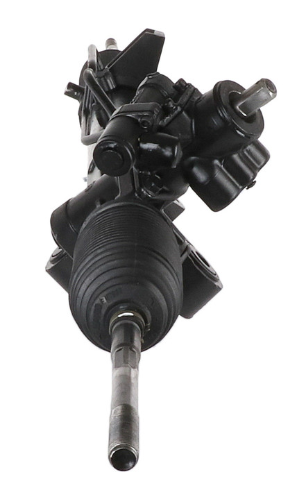

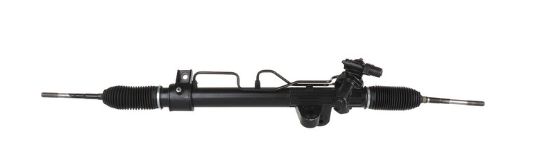

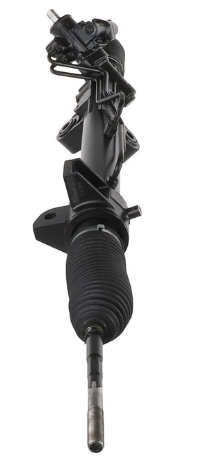

The CARDONE 22-1042E Remanufactured Rack & Pinion Assembly is expertly engineered to restore precise steering performance and original equipment reliability to GM crossovers like the Buick Enclave, Chevrolet Traverse, GMC Acadia, and Saturn Outlook.
Each unit is completely remanufactured and tested to meet or exceed factory specifications. CARDONE’s advanced process includes 100% hydraulic and performance testing, ensuring smooth steering assist, proper flow rates, and no internal or external leaks. New OE-style O-rings, seals, and valve components are installed to deliver leak-free operation and extended service life.
A protective anti-corrosion coating shields the housing for long-term durability, and the included Electronic Variable Orifice (EVO) component ensures proper compatibility with vehicles equipped with Variable Effort Steering (NV7) systems.
Remanufactured in an eco-conscious process that reduces raw material and energy use by up to 80% compared to new production.
OE-fit design: Direct bolt-on replacement for perfect alignment and fit.
100% performance and hydraulic testing: Guarantees correct steering assist and zero leakage.
Electronic Variable Orifice (EVO) compatible: Maintains variable steering effort across driving conditions.
All-new seals and O-rings: Ensures long-lasting, leak-free operation.
Protective coating: Extends housing life and resists corrosion.
Includes inner tie rods and seal kit: Complete and ready for installation.
Environmentally responsible: Uses 80% less energy and raw material than new units.
| Specification | Detail |
|---|---|
| Type | Hydraulic (with Electronic Variable Orifice) |
| Product Condition | Remanufactured |
| Total Turns Lock-to-Lock | 2.875 |
| Input Shaft Type | Double Flat |
| Steering Input Shaft Diameter | 16.71 mm (0.658 in) |
| End-to-End Length | 1346.2 mm (53 in) |
| Inlet Line Fitting | 11.58 mm (0.456 in), Male |
| Outlet Line Fitting | 11.98 mm (0.47 in), Male |
| Mounting Hole Quantity | 4 |
| Inner Tie Rods Included | Yes |
| Outer Tie Rods Included | No |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Gasket/Seal Included | Yes |
| Bellows Color | Black |
| Package Weight | 27.28 lb |
| e-Waste | Yes |
| Package Contents | Rack & Pinion, Sealing Kit, Instruction Sheet |
Buick: 20964165, 22902260
Chevrolet: 20843950, 20964165, 22902260, 25789067, 25876162, 25971331
GMC: 15869783, 20843950, 20964165, 22902260, 25789067
Saturn: 15869783, 25789067, 25876162
For vehicles equipped with Hydraulic Power Steering and Variable Effort Steering (NV7).
Includes inner tie rods and supplied with Electronic Variable Orifice (EVO) component.
Buick Enclave (2008–2017) – 3.6L
Chevrolet Traverse (2009–2017) – 3.6L
GMC Acadia (2007–2016) – 3.6L
GMC Acadia Limited (2017) – 3.6L
Saturn Outlook (2007–2010) – 3.6L
For warranty compliance: Always install an in-line steering filter, flush the power steering system, and use only OE-specified steering fluid.
