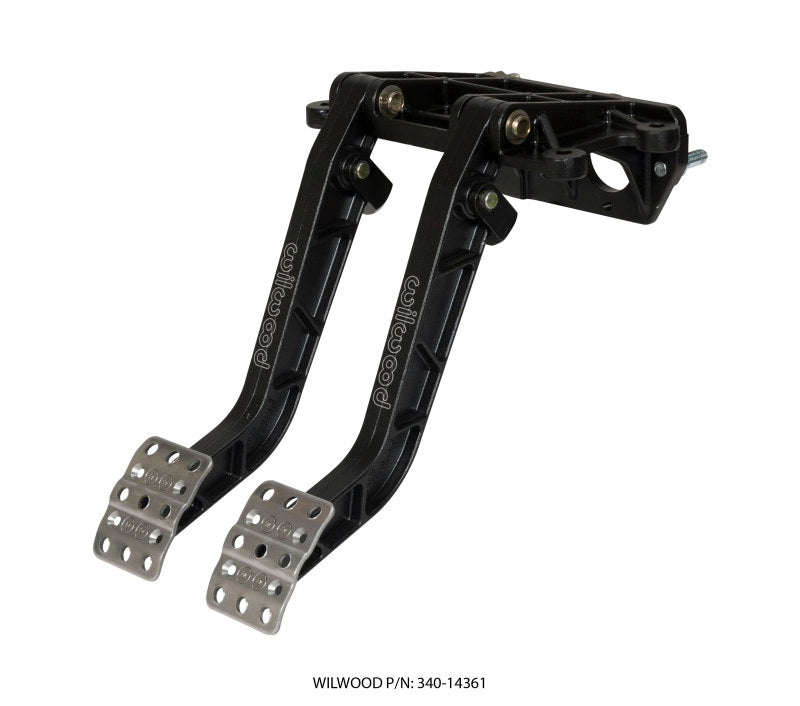

The Wilwood Adjustable Tandem Dual Pedal Assembly (Part #wil340-14361) offers a reliable and efficient solution for installing a tandem outlet, single pushrod brake master cylinder alongside a hydraulic clutch master cylinder in a forward position outside the firewall. Constructed with a lightweight aluminum frame, this pedal assembly features high-strength reinforced I-Beam style forged pedal arms with optional ratios of 6.25:1 or 7.00:1, allowing drivers to select the feel that best suits their driving style. The non-skid waffled pedal pads can be laterally adjusted to accommodate driver preference or clearance needs, enhancing comfort and control during operation. This assembly fits most tandem cylinders with a 3.25-inch horizontal bolt spacing and includes additional mounting points for vertical mount tandem master cylinders spaced 2.50 inches apart using 5/16-18 studs, which are not supplied. The clutch master cylinder mount also features a 2.50-inch vertical mount, compatible with most popular single outlet cylinders, providing versatile installation options. Designed with durability and performance in mind, this pedal assembly is ideal for race cars, hot rods, or custom vehicles requiring a high-quality brake and clutch setup outside the firewall. Its robust construction and adjustable features ensure precise pedal feel and reliable operation in demanding driving conditions, making it an excellent choice for both professional and enthusiast builders seeking to optimize their vehicle*s braking and clutch systems.
Features:
- Lightweight aluminum frame for durability and reduced weight
- Reinforced I-Beam style forged pedal arms with 6.25:1 or 7.00:1 ratios
- Non-skid waffled pedal pads with lateral adjustment for driver comfort
- Compatible with most tandem cylinders with 3.25-inch horizontal bolt spacing
- Additional mounting points for vertical mount tandem master cylinders using 5/16-18 studs
- Clutch master cylinder mount supports most single outlet cylinders with 2.50-inch vertical spacing
- Designed for outdoor firewall mounting, ideal for race and custom applications
