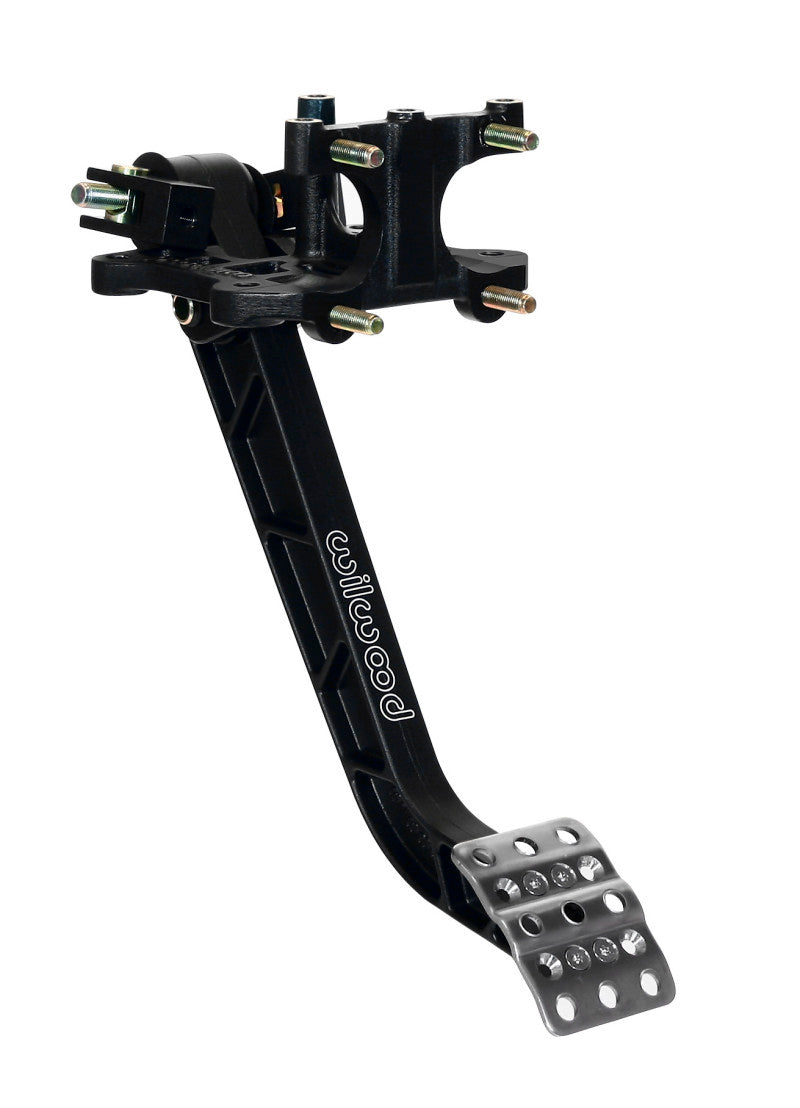

The Wilwood adjustable brake pedal assembly (Part No. Wil340-12509) is designed for high-performance automotive applications, providing a reliable and customizable mounting solution for dual master cylinders. Constructed with a lightweight aluminum frame, this pedal assembly offers durability without adding unnecessary weight. The high-strength reinforced I-beam style forged pedal arm features a 6.25:1 ratio, delivering precise pedal feel and optimal leverage for effective braking performance. The non-skid waffled pedal pad can be laterally adjusted to accommodate driver preferences or clearance requirements, ensuring comfort and control during operation.
The assembly incorporates a balance bar with a positive detent stop every full turn, which maintains adjustment position and enhances driver awareness. Its pin and clevis pushrod attachment system allows for a high degree of misalignment angle, providing bind-free operation throughout the pedal's full range of travel. The balance bar can be securely locked in place with the included jam nut or used with an optional remote cable for quick adjustments during track sessions.

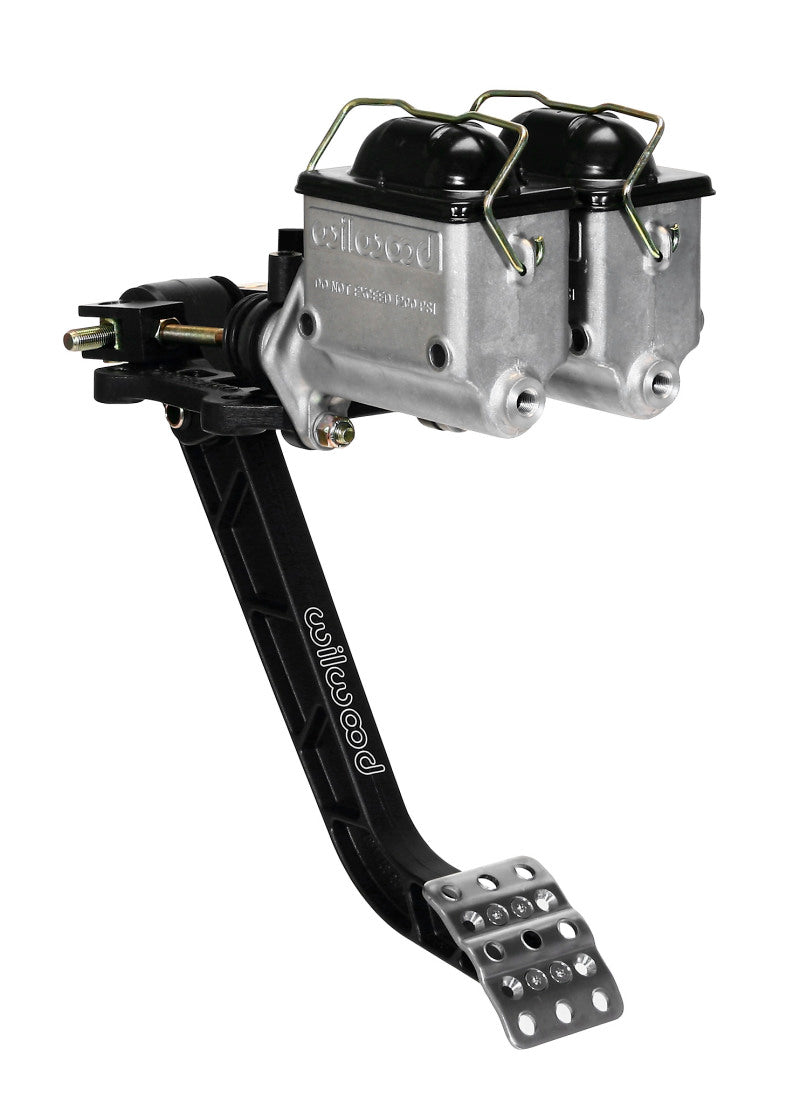

This pedal assembly is compatible with any Wilwood vertical mount flange single outlet master cylinders, which are ordered separately based on style and bore size, offering flexibility for various braking setups. Its robust design ensures consistent performance in demanding environments, making it an ideal choice for race cars, custom builds, or high-performance street vehicles. Designed for ease of installation and adjustment, the Wilwood adjustable brake pedal assembly enhances control and responsiveness, contributing to safer and more confident braking performance on the track or street.
Features:
- Lightweight aluminum frame for durability and reduced weight
- Reinforced I-beam style forged pedal arm with 6.25:1 ratio for optimal leverage
- Non-skid waffled pedal pad with lateral adjustment for driver comfort
- Balance bar with positive detent stops for consistent adjustment
- Pin and clevis pushrod system allowing high misalignment angle for bind-free operation
- Optional remote cable for quick on-track adjustments
- Compatible with Wilwood vertical mount flange single outlet master cylinders
