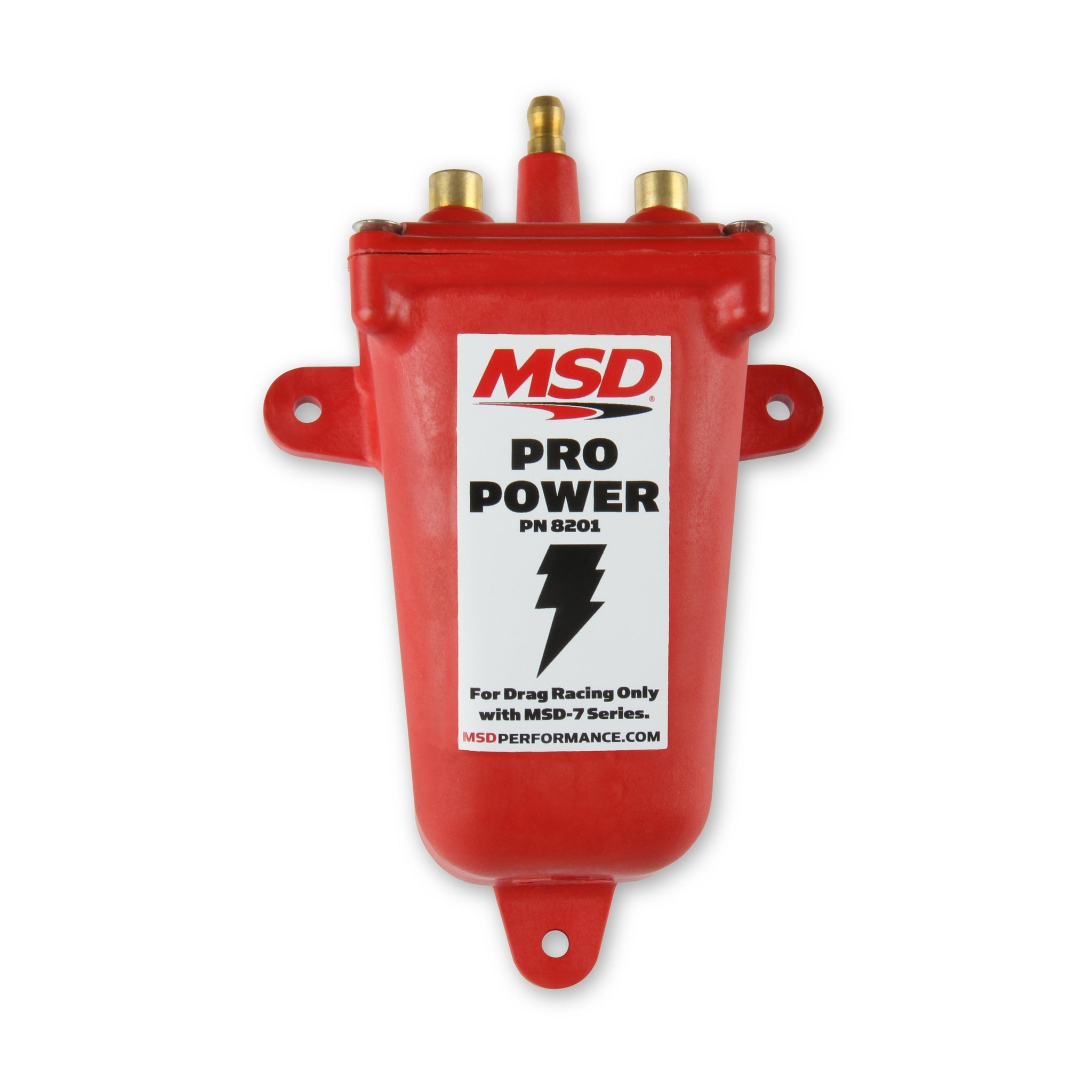

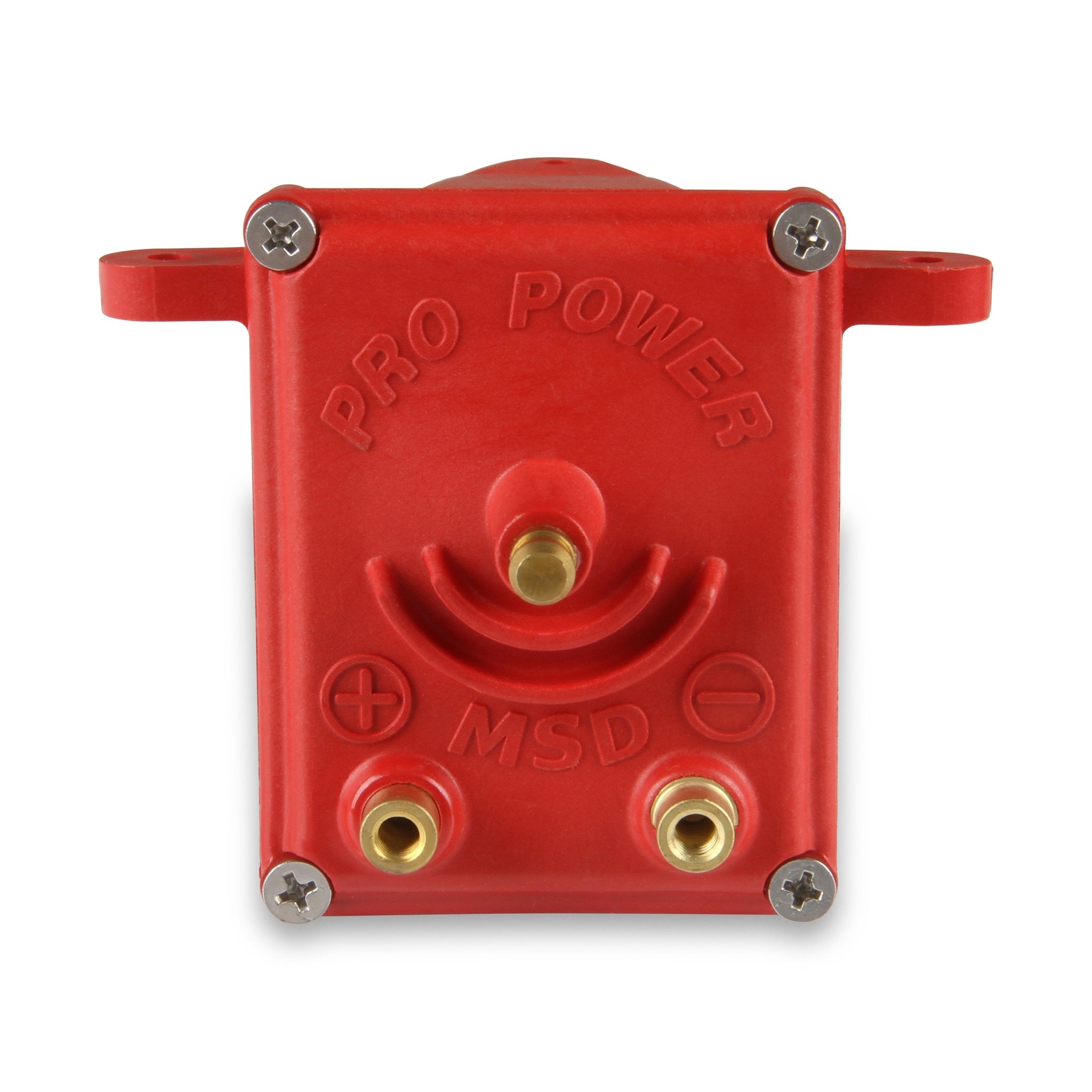

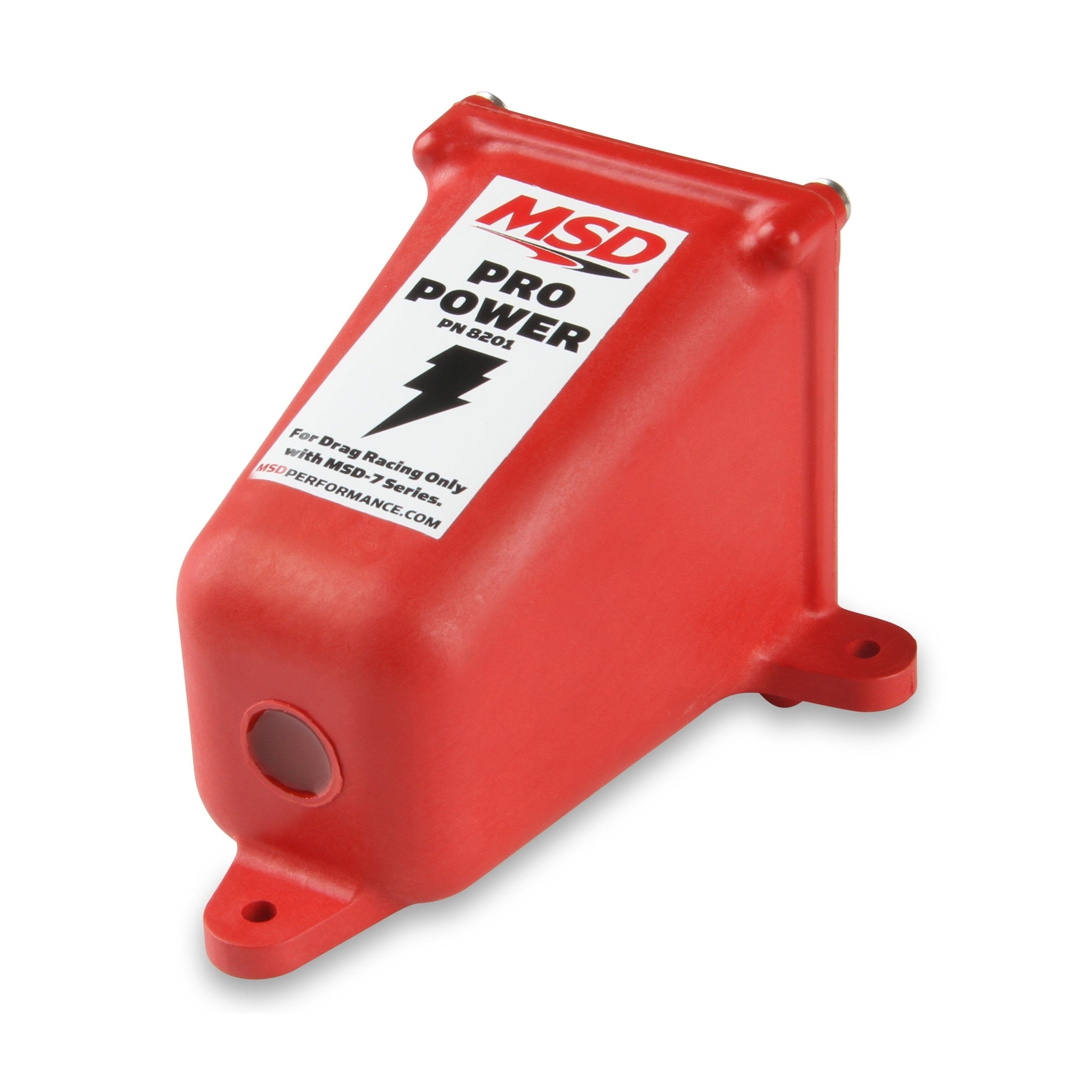

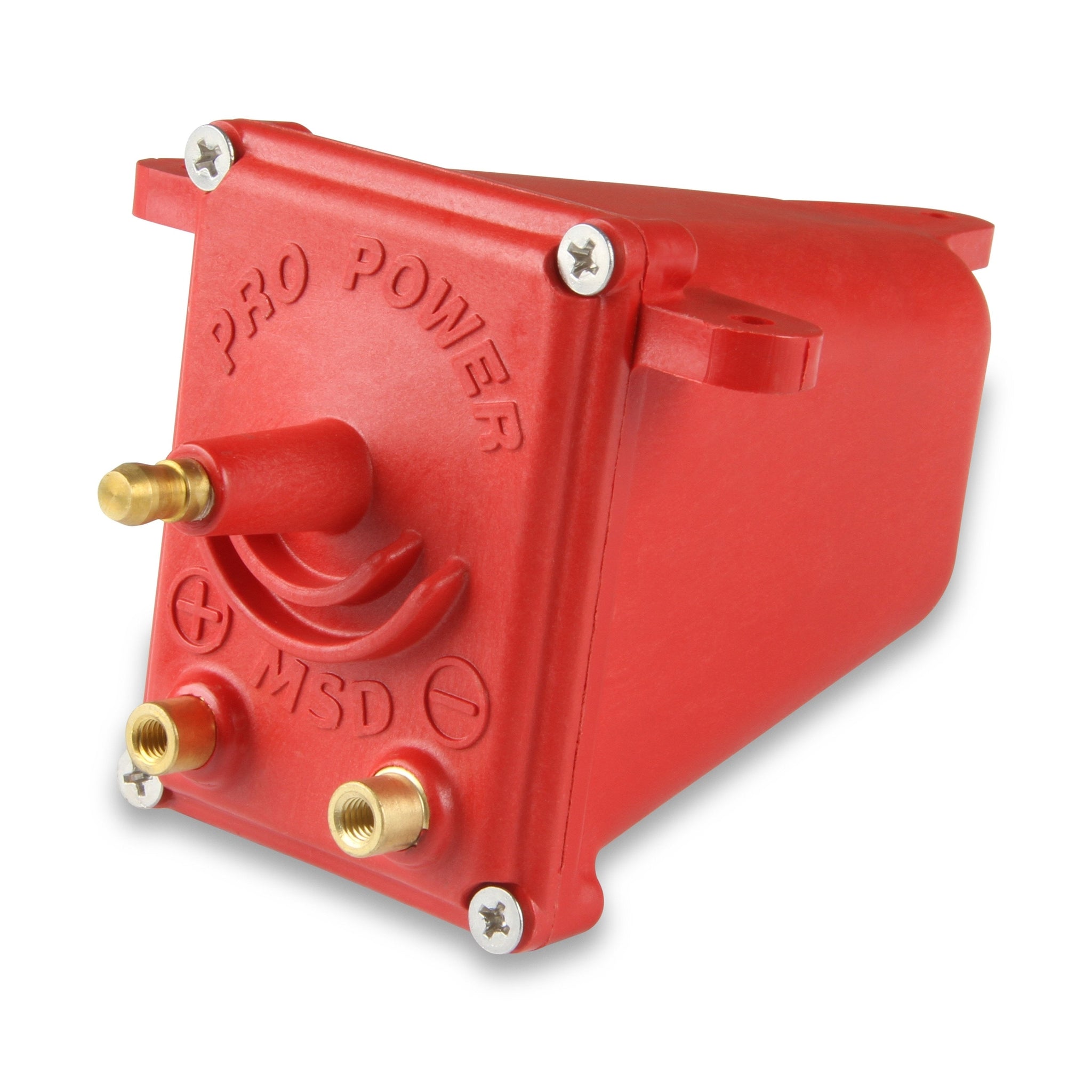

Use with MSD 7 and 8 Series Ignitions ONLY - Short-Duration Applications
Overview
This Coil is designed for use with an MSD 7AL-2 (#7220), 7AL-2 Plus (#7222), 7AL-3 (#7230), and MSD 8 (7805) Ignitions only.
The special windings of the Pro Power Coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series Ignition Control. The MSD Pro Power Coil is a great choice for short-duration applications such as drag racing.
Sold Individually.
Features:
- For MSD 7 and 8 ignitions only, not for use on street vehicles
- Extremely low primary resistance

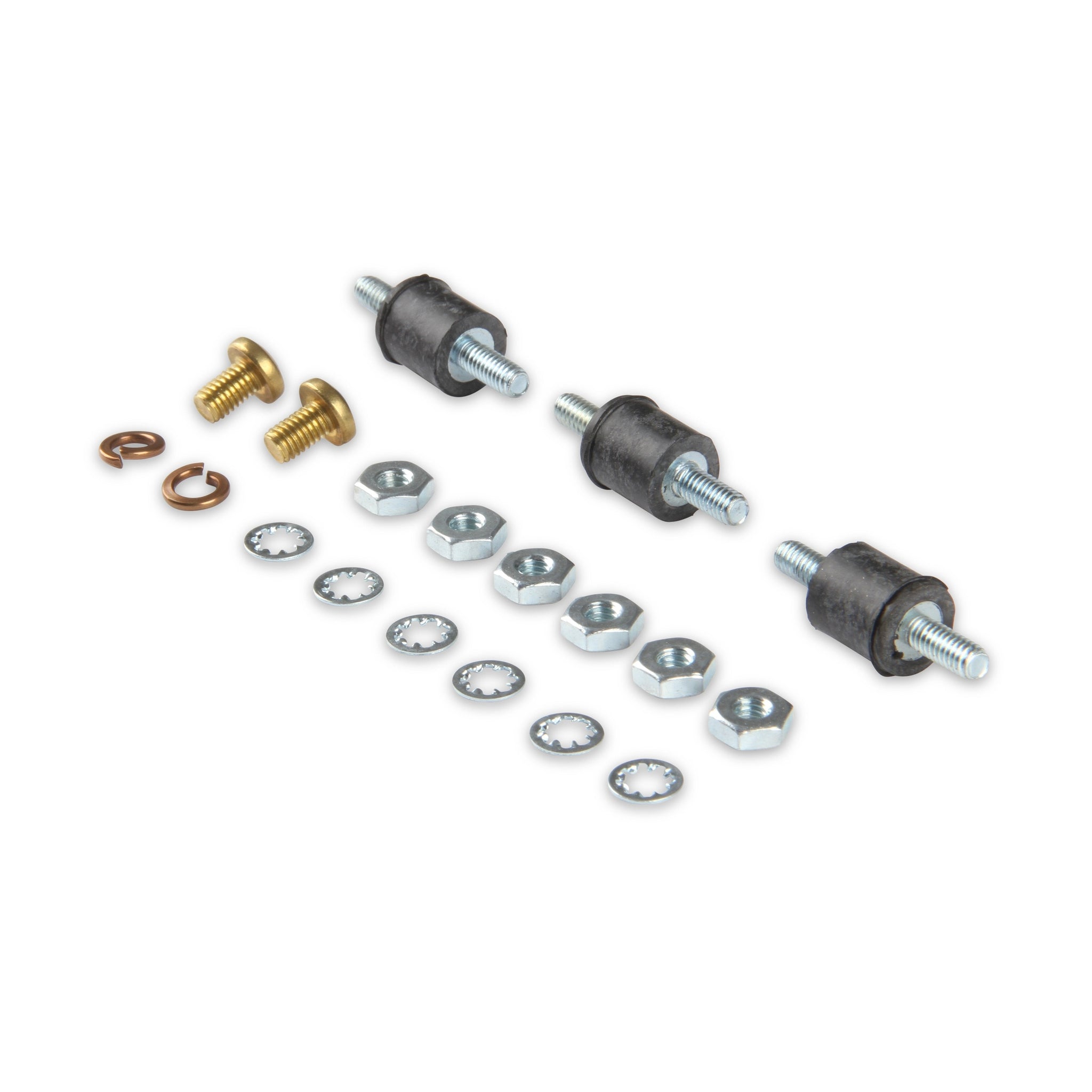

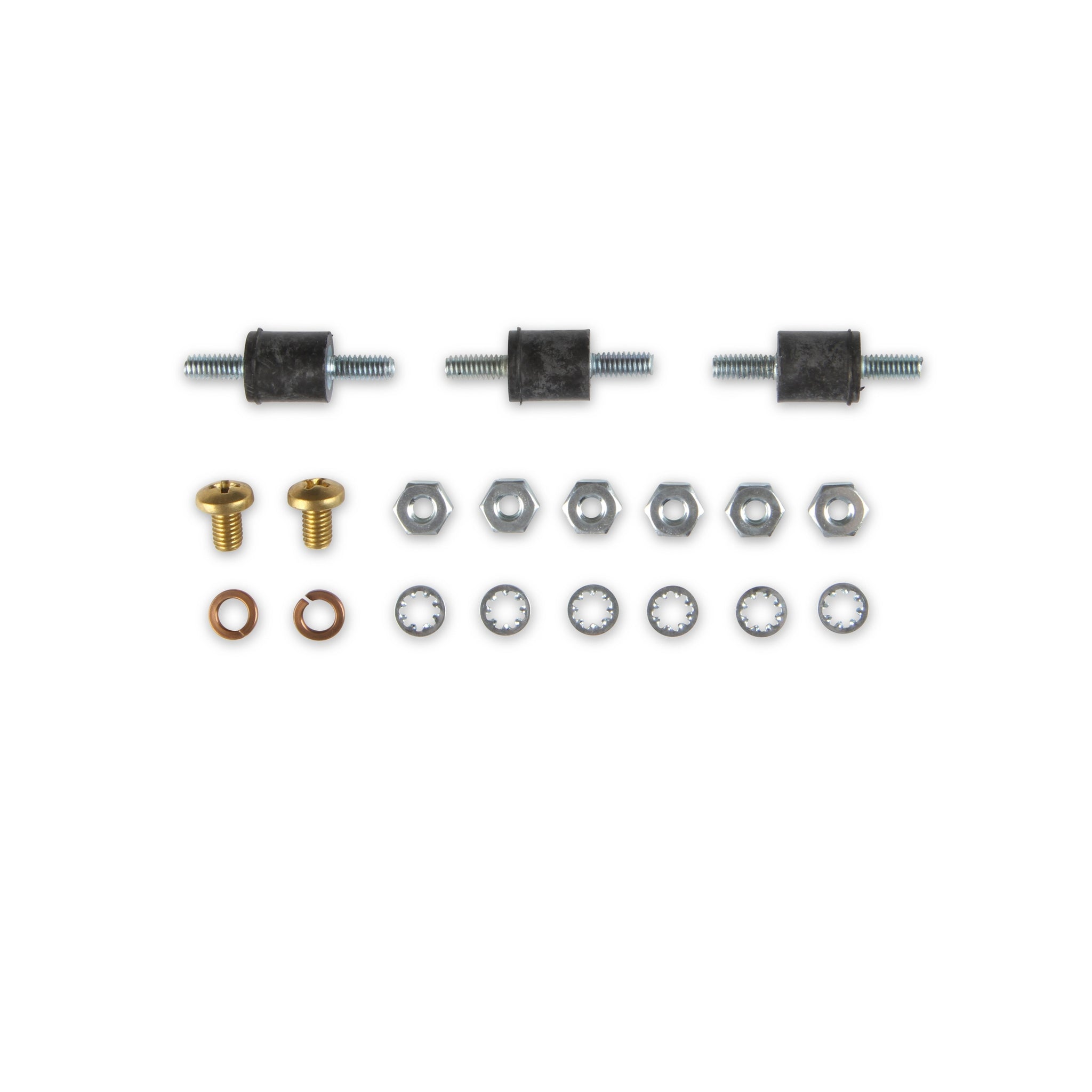

- Supplied with rubber shock mounts
- Housing is molded from a durable and high dielectric polyester
- High voltage coil designed for short duration applications only
- Primary and secondary windings are encased in Ciba polyurethane for vibration protection
Specs:
-
Brand: MSD
-
Category: Ignition
-
Color: Red
-
Emission Code: 4
-
Inductance: 1 mH
-
Maximum Voltage: 43,000 2H
-
part type: Ignition Coil
-
Peak Current: 800 4K
-
Primary Resistance: 0.03 82
-
Product Type: Ignition Coil
-
Secondary Resistance: 240 82
-
Spark Duration: 0.18 MESC
-
Sub Category: Ignition Coil
-
Turns Ratio: 4.17
-
Type: Drag Race / Short Duration Use
-
Warranty: Manufacturer's Limited 1 Year Warranty
-
UPC: 085132082018
-
Warning: California Proposition 65
-
Part Number: 8201
Emissions
This part is legal for sale or use on Racing Use Only Vehicles
The following vehicles are considered Racing Use Only Vehicles:
Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.
WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
