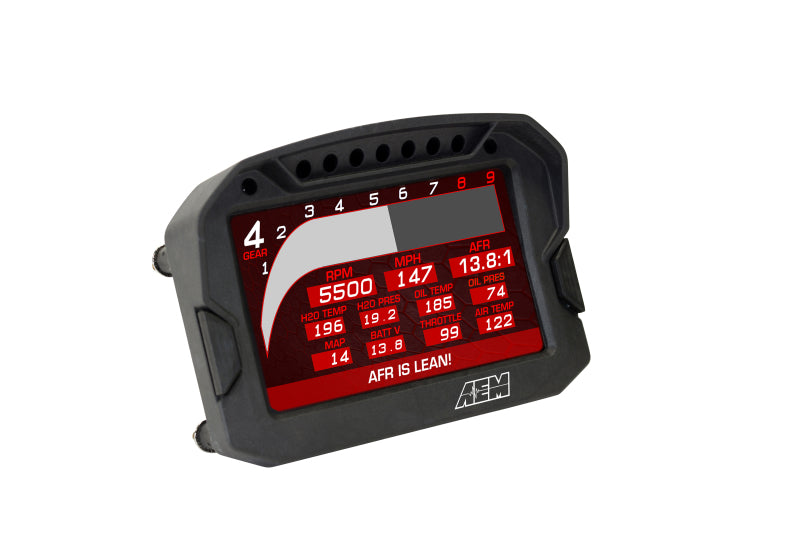

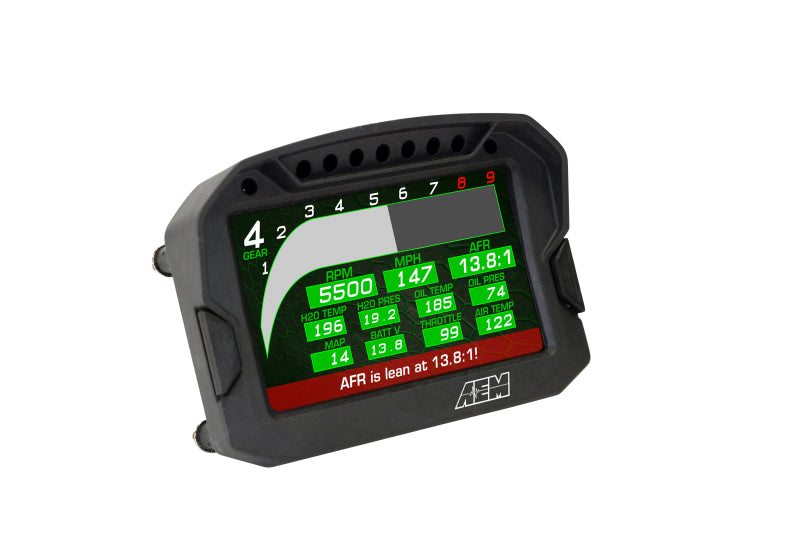

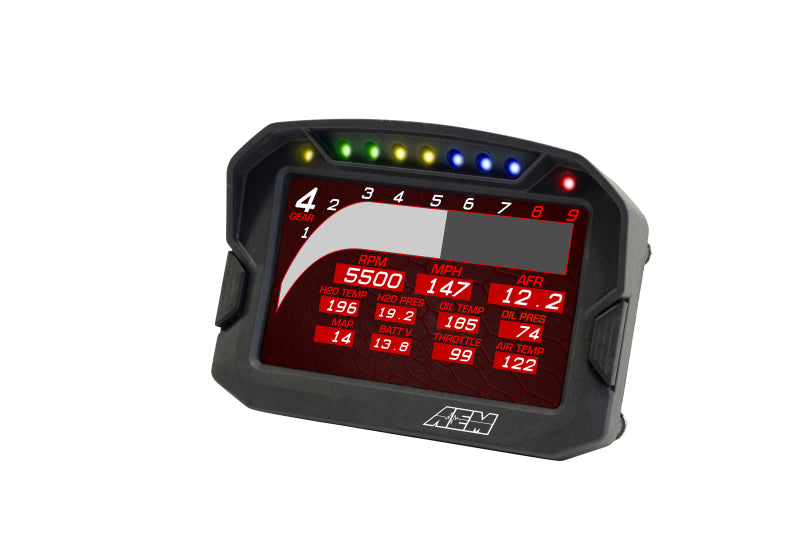

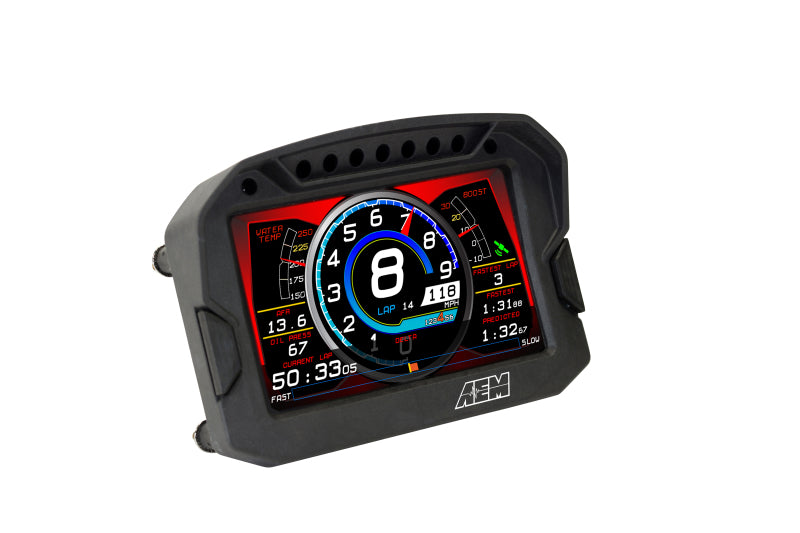

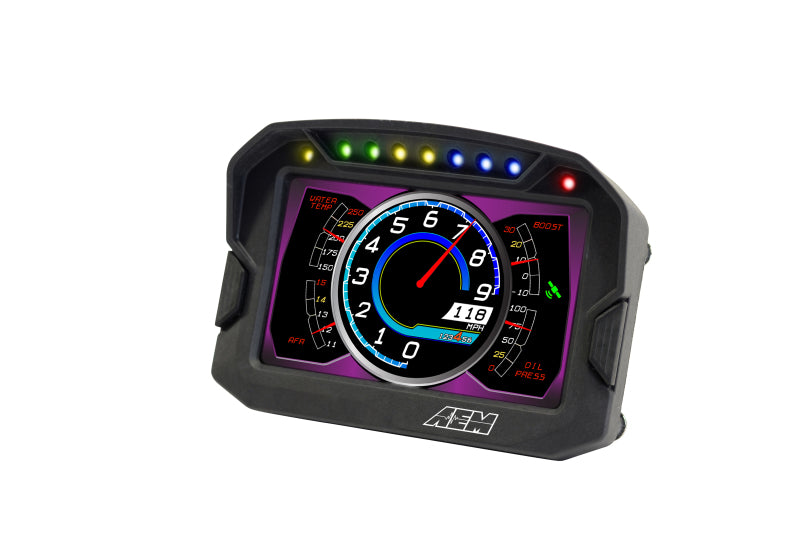

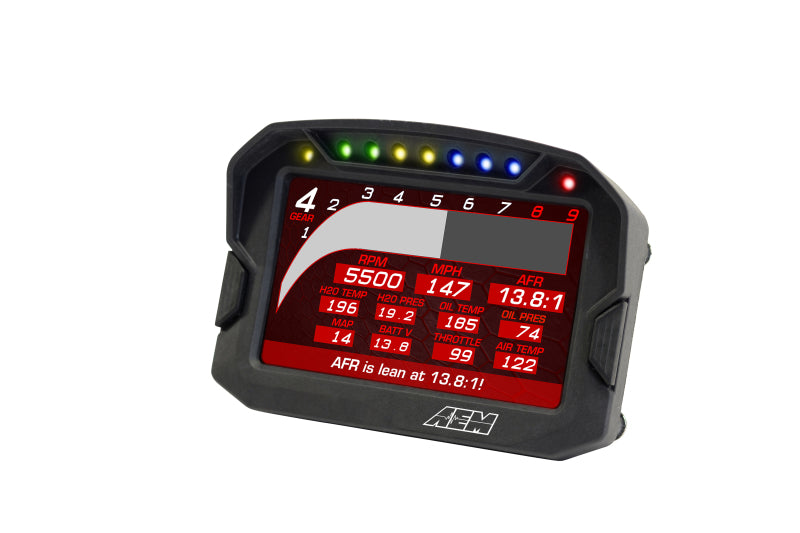

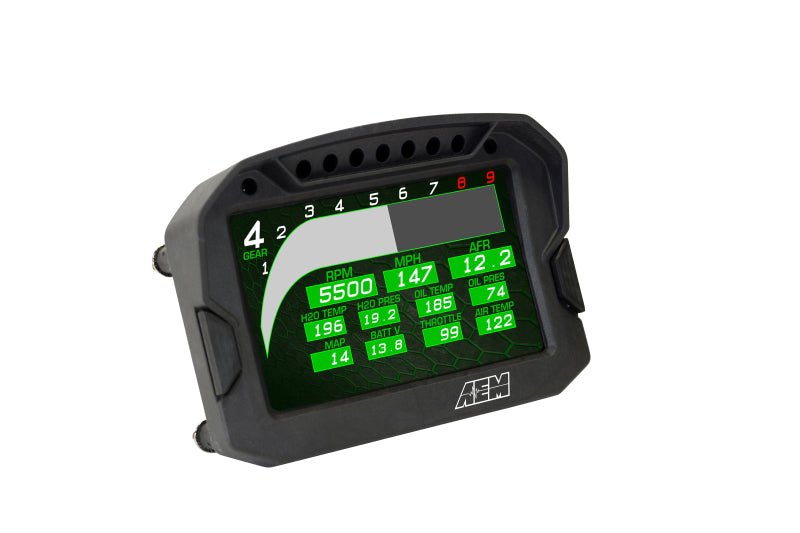

The AEM CD-5 Carbon Digital Dash Display features a vibrant 5-inch full-color, daylight-readable screen encased in a durable, lightweight flow-molded carbon fiber composite housing. Its design incorporates seven ultra-bright LEDs along the top of the housing, which serve as RPM and shift indicators. These LEDs can be programmed to ascend in specific RPM increments and flash to signal optimal shift points, with brightness adjustable to suit ambient lighting conditions. Two large, easily accessible buttons on the face enable effortless page navigation and memory resets, even while wearing gloves, with options for remote mounting via the rear connector for added flexibility. Two additional programmable LEDs located above the toggle buttons provide quick visual cues for user-defined alerts, making it a versatile instrument for performance driving or racing applications.

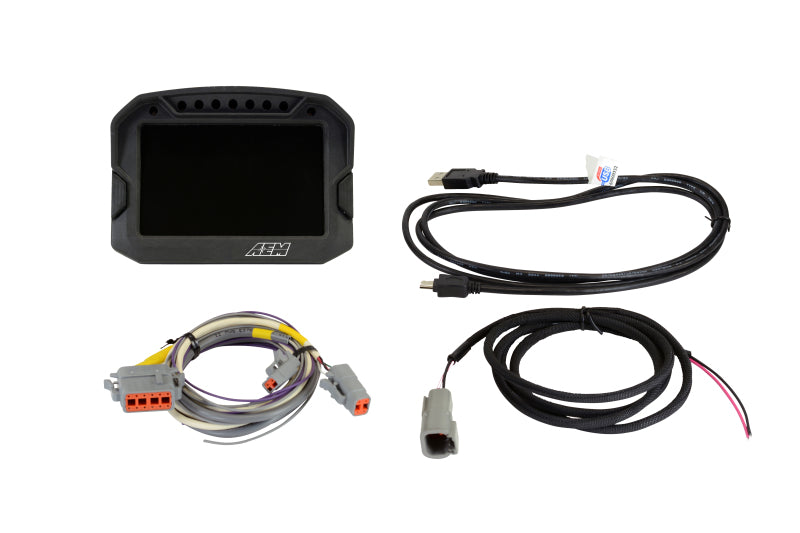

The dash display offers extensive data logging and integration capabilities, supporting over 250 CAN devices, including GPS, gyroscope, accelerometer, and vehicle-specific sensors. Its 5-inch diagonal screen with 800x480 resolution ensures clear visibility in all lighting conditions, thanks to its anti-glare filter and 1000cd/m² brightness level. The device accepts channels from two separate CAN bus connections, compatible with AEMnet-enabled devices and third-party systems, providing seamless integration for a broad range of vehicle setups. For vehicles with different ECU configurations, the CD-5 can be installed using a 22-channel CAN sensor module for carbureted and pre-2008 stock ECUs or a plug-and-play OBDII CAN adapter for 2008 and newer models.
The dash's customizable interface includes multiple programmable pages, alarms, and on-change notifications, allowing drivers to tailor the display to their needs. With over 200 preloaded warning icons and the ability to add custom graphics, users can create a highly personalized display environment. The IP66-rated housing ensures reliable operation in harsh conditions, including marine and motorcycle environments. Additional features include optional onboard GPS and data logging up to 200MB, night mode with 'headlight-in' connection, and a user-friendly DashDesign Graphics Editor software for designing custom layouts. Weighing just under 12 ounces, the AEM CD-5 Carbon Digital Dash is a robust and versatile solution for high-performance vehicle monitoring and data analysis.
Features:
- Full-color 5-inch daylight-readable display with 800x480 resolution
- Durable carbon fiber composite enclosure for lightweight strength
- Seven programmable LED shift lights with dimming capability
- Two large face buttons for easy navigation and reset functions
- Supports over 250 CAN devices for comprehensive vehicle data logging
- Accepts channels from dual CAN bus connections for versatile integration
- Compatibility with ECUs via CAN sensor modules or plug-and-play adapters
- Customizable pages, alarms, and on-change notifications for tailored monitoring
- Over 200 warning icons with options for custom graphics
- IP66 water resistance suitable for marine and motorcycle applications
- Optional onboard GPS receiver and data logging capacity
- Night operation mode with dimming feature
- User-friendly DashDesign Graphics Editor for custom layout creation
- Lightweight design at approximately 11.7 ounces for ease of installation
