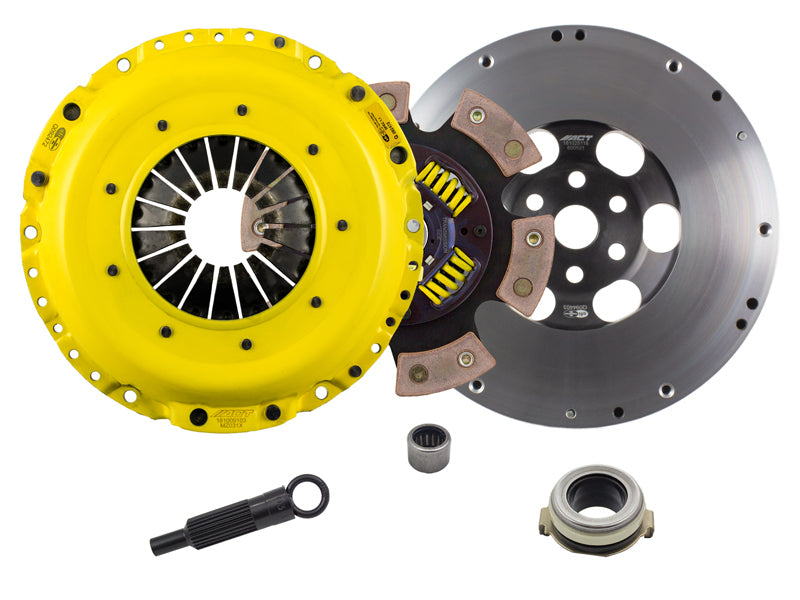

The ACT ZX4-XTG6 clutch kit is designed for high-performance applications on Mazda models including the Mazda 3 and Mazdaspeed 3, 2007-2013, as well as Mazda 6, 2006-2011. This kit features an Xtreme pressure plate engineered for demanding drivers seeking maximum clutch durability and performance. The exclusive diaphragm design increases clamp load, reduces deflection, and extends clutch life, ensuring reliable operation under aggressive driving conditions. All diaphragms undergo a rigorous four-stage heat-treating process, providing enhanced heat resistance and durability for high-heat environments.
Constructed with precision cover stampings for rigidity and consistency, the ACT pressure plate maintains optimal engagement and slip control. The included 6-pad spring-centered race disc employs a spring-center construction that effectively dampens torsional vibrations, contributing to smoother shifts and reducing stress on drivetrain components. With wraparound spring windows and thicker retainer stampings, the spring retainers offer superior support, minimizing stress concentrations and boosting overall strength and reliability. While the 6-pad spring-centered disc offers a harsher engagement, it allows for faster shifting, making it suitable for high-performance street or race applications. This clutch kit is carefully engineered, assembled with high-quality ceramic friction materials, and dynamically balanced for smooth high-RPM operation.
Designed for moderate to heavy pedal effort and aggressive engagement, the ACT ZX4-XTG6 kit provides reliable friction life and performance, backed by a one-year warranty. Suitable for high horsepower builds, it is recommended for drivers seeking increased heat absorption and maximum performance on demanding tracks or street driving. This kit fits select Mazda 3 and Mazda 6 models from 2006 to 2013, providing a robust upgrade for enthusiasts and racers alike.
Features:
- Xtreme pressure plate with exclusive diaphragm design for increased clamp load and durability
- Four-stage heat-treated diaphragms for high heat resistance and extended clutch life
- Precision cover stampings for rigidity and consistency
- 6-pad spring-centered race disc with damping to reduce torsional vibrations
- Wraparound spring windows and thicker retainer stampings enhance support and reliability
- Harsher engagement for faster shifting, suitable for high-performance use
- High-quality ceramic friction materials for high heat tolerance
- Dynamically computer balanced for smooth high RPM operation
- Designed for moderate to heavy pedal effort and aggressive engagement
- Backed by a one-year warranty for performance assurance
Fitment:
2006 Mazda 6 Mazdaspeed
2007 Mazda 3 Mazdaspeed
2007 Mazda 6 Mazdaspeed
2008 Mazda 3 Mazdaspeed
2009 Mazda 3 Mazdaspeed
2010 Mazda 3 Mazdaspeed
2011 Mazda 3 Mazdaspeed
2012 Mazda 3 Mazdaspeed
2013 Mazda 3 Mazdaspeed
