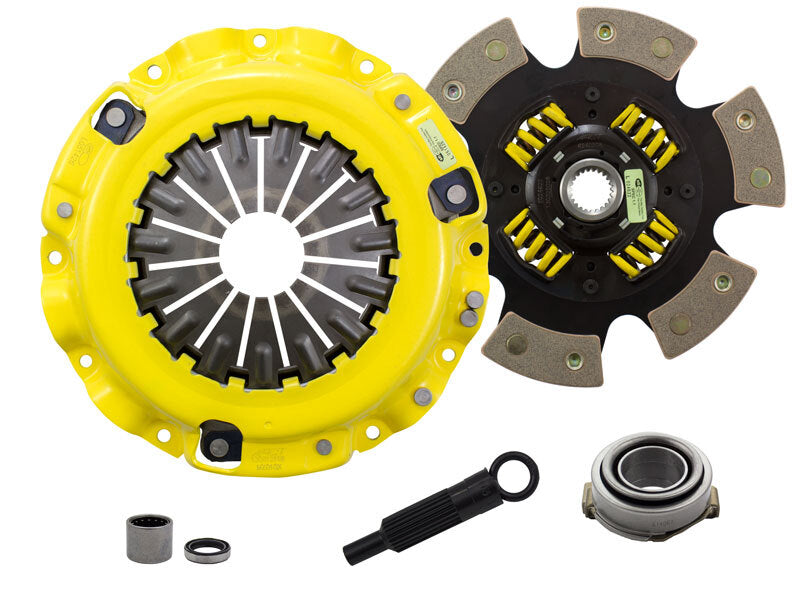

The ACT Z65-XTG6 clutch kit is designed for high-performance applications, featuring an Xtreme pressure plate that caters to demanding drivers seeking maximum durability and engagement. The pressure plate employs an exclusive diaphragm design that increases clamp load, reduces deflection, and extends clutch life. Each diaphragm undergoes a four-stage heat-treating process, ensuring consistent performance under high-stress conditions. Precision cover stampings provide added rigidity and uniformity, contributing to reliable operation during aggressive driving. The kit includes a 6-pad spring-centered race disc with spring-center construction, which effectively dampens torsional vibrations and resists failure in harsh environments. ACT's spring retainers utilize wraparound spring windows and thicker stampings, offering enhanced spring support, reducing stress concentrations, and boosting overall strength and reliability. Engagement tends to be harsher, leading to faster shifting, making it ideal for larger clutch sizes that need to absorb more heat during high-performance use. The clutch assembly is engineered with select ceramic friction materials that offer high heat tolerance, ensuring maximum performance and extended friction life. It is recommended for high horsepower street or race vehicles, providing a balanced combination of aggressive engagement and durability. Each kit is 100% clamp load tested and dynamically computer balanced for smooth high RPM operation, backed by ACT's industry-leading one-year warranty for peace of mind.
Features:
- Xtreme pressure plate with exclusive diaphragm design for increased clamp load and durability
- Four-stage heat-treated diaphragms for consistent high-performance
- Precision cover stampings enhance rigidity and stability
- 6-pad spring-centered race disc dampens torsional vibrations and resists failure
- Wraparound spring retainers with thicker stampings for increased strength and support
- Harsher engagement for faster shifting, suitable for larger clutch sizes
- Uses high heat-tolerant ceramic friction materials for maximum performance
- Engineered and balanced for high RPM reliability
- Recommended for high horsepower street or race applications
- Backed by a one-year warranty for quality assurance
Fitment:
1986 Mazda RX-7 Turbo
1987 Mazda RX-7 Turbo
1988 Mazda RX-7 10th Anniversary
1988 Mazda RX-7 Turbo
1989 Mazda RX-7 Turbo
1990 Mazda RX-7 Turbo
1991 Mazda RX-7 Turbo
