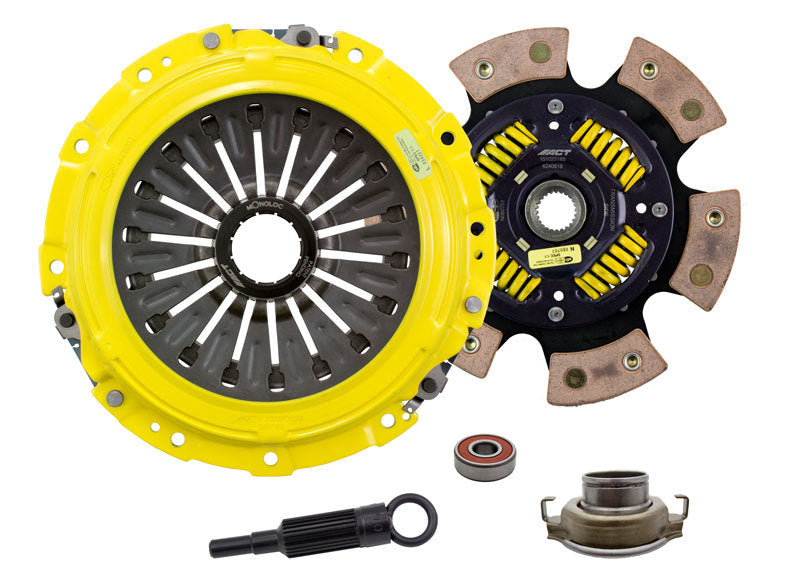

The ACT SB10-XTG6 clutch kit is engineered for high-performance driving and extreme conditions, specifically designed to fit select Subaru models including Impreza and Legacy from 2007 to 2014. Featuring an Xtreme pressure plate, this kit employs an exclusive diaphragm design that increases clamp load, reduces deflection, and significantly extends clutch life. All diaphragms undergo a rigorous four-stage heat-treating process, ensuring durability and consistent performance under demanding conditions. The precision cover stampings add rigidity and uniformity, contributing to smoother engagement and reliable operation.
The kit includes ACT’s 6-pad spring-centered race disc, which is constructed with a spring-center design that effectively dampens torsional vibrations and resists failure during aggressive driving. The race disc’s design allows for harsher engagement, resulting in quicker shifts—ideal for high horsepower street or racing applications. The 6-pad configuration also helps manage heat more efficiently, making it suitable for larger clutch sizes that generate more heat during intense use.
Monoloc, a one-piece, hardened chrome-moly steel collar, is included as a direct replacement or upgrade component. It provides uniform load distribution on the bearing and pressure plate, maintaining proper alignment regardless of modifications or driver influence. The Monoloc’s robust construction ensures years of reliable service, making it an excellent choice for enthusiasts seeking durability and performance.
This clutch kit is carefully engineered, precisely assembled, and dynamically balanced to deliver smooth, reliable high-RPM operation. It utilizes select ceramic friction materials known for high heat tolerance and maximum performance. The ACT SB10-XTG6 is factory tested for clamp load and balance, and it features ACT’s patented Monoloc system for optimal alignment and longevity. Backed by a one-year warranty, this kit offers confidence in performance and durability for high-performance street and race driving.
Features:
- Xtreme pressure plate with exclusive diaphragm design for increased clamp load and reduced deflection
- Heat-treated diaphragms for enhanced durability and performance consistency
- Precision cover stampings for rigidity and uniform engagement
- 6-pad spring-centered race disc dampens torsional vibrations and resists failure
- Hardened chrome-moly Monoloc collar for optimal load distribution and alignment
- Harsher engagement for faster shifting, ideal for high horsepower applications
- Select ceramic friction materials for high heat tolerance and maximum performance
- Factory tested clamp load and dynamic balance for smooth operation at high RPM
- Backed by a one-year warranty for confidence and peace of mind
Fitment:
2004 Subaru Impreza WRX STI
2005 Subaru Impreza WRX STI
2006 Subaru Impreza WRX STI
2007 Subaru Impreza WRX STI
2007 Subaru Impreza WRX STI Limited
2007 Subaru Legacy GT spec.B
2008 Subaru Impreza WRX STI
2008 Subaru Legacy GT spec.B
2009 Subaru Impreza WRX STI
2009 Subaru Legacy GT spec.B
2010 Subaru Impreza WRX STI
2010 Subaru Impreza WRX STI Special Edition
2011 Subaru Impreza WRX STI
2011 Subaru Impreza WRX STI Limited
2012 Subaru Impreza WRX STI
2012 Subaru Impreza WRX STI Limited
2013 Subaru Impreza WRX STI
2013 Subaru Impreza WRX STI Limited
2014 Subaru Impreza WRX STI
2014 Subaru Impreza WRX STI Limited
2015 Subaru WRX STI Base
2015 Subaru WRX STI Launch Edition
2015 Subaru WRX STI Limited
2016 Subaru WRX STI Base
2016 Subaru WRX STI Limited
2016 Subaru WRX STI Series.HyperBlue
2017 Subaru WRX STI Base
2017 Subaru WRX STI Limited
2018 Subaru WRX STI Base
2018 Subaru WRX STI Limited
2018 Subaru WRX STI Type RA
2019 Subaru WRX STI Base
2019 Subaru WRX STI Limited
2019 Subaru WRX STI S209
2020 Subaru WRX STI Base
2020 Subaru WRX STI Limited
2021 Subaru WRX STI Base
2021 Subaru WRX STI Limited
